    Upgrade Your Construction Process with SYS-320 Edge Banding Machine's Six Functions

    Ask Lasest Price
    Brand Name : OSETMAC
    Certification : CE ISO
    Price : $5,980.00/sets 1-99 sets
    • Product Details
    • Company Profile

    Upgrade Your Construction Process with SYS-320 Edge Banding Machine's Six Functions

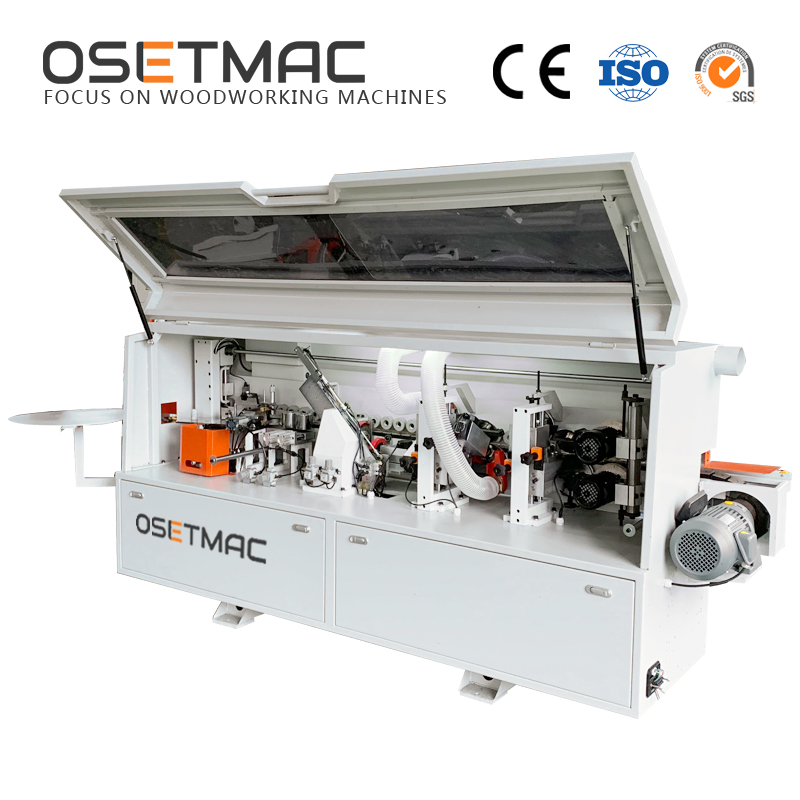

    Automatic Edge Banding Machine SYS-320
    Upgrade Your Construction Process with SYS-320 Edge Banding Machine's Six Functions
    Upgrade Your Construction Process with SYS-320 Edge Banding Machine's Six Functions
    Upgrade Your Construction Process with SYS-320 Edge Banding Machine's Six Functions
    Upgrade Your Construction Process with SYS-320 Edge Banding Machine's Six Functions
    Main Technical Parameter
    Model
    SYS-320
    Panel Thickness
    10-60mm
    Edge Band Thickness
    0.3-3mm
    Panel Width
    ≥60mm
    Panel Length
    ≥150mm
    Feeding Speed
    15m/min
    Working Pressure
    0.6Mpa
    Voltage
    380V/50HZ/3PH
    Gluing Motor
    0.37KW/50HZ/1400RPM
    End Cutting Motor
    0.37KW * 2/200HZ/12000RPM
    Fine Trimming Motor
    0.37KW * 2/200HZ/12000RPM
    Buffing Motor
    0.37KW * 2/50HZ/1400RPM
    Conveyor Motor
    1.5KW
    Glue Pot Heating Power
    1.5KW
    Assistant Heating Power
    0.3KW
    Lighting Power
    0.05KW
    Total Power
    6.3KW
    Dimension
    3155x730x1350mm
    Wooden Case Package
    3250x870x1450mm
    Weight
    820KG
    Packing&Shipping
    Upgrade Your Construction Process with SYS-320 Edge Banding Machine's Six Functions
    Upgrade Your Construction Process with SYS-320 Edge Banding Machine's Six Functions
    Upgrade Your Construction Process with SYS-320 Edge Banding Machine's Six Functions
    Upgrade Your Construction Process with SYS-320 Edge Banding Machine's Six Functions
    After Sales Service
    Upgrade Your Construction Process with SYS-320 Edge Banding Machine's Six Functions
    Our Service
    The whole machine is guaranteed for one year, providing installation and use video, lifelong technical support and parts service
    Company Introduction
    OSETMAC focuses on woodworking machines for over 8 years. OSETMAC has two wholly-owned manufacturing factories--Qingdao Three One
    Three Machinery Company and Qingdao De Tai Wo Machinery Company. Our factories have been well-recognized as a professional
    woodworking machine producers. The main products of OSETMAC is sliding table saw, brush sanding machine, edge banding machine,
    wood drilling machine and CNC routers. What’s more, our products have been sold to more than 30 countries and regions in Middle
    East, Southeast Asia, Europe and South America.OSETMAC is able to do our own R&D, deliver production task on time and provide
    customer service quickly. The manufacturing factories have already been granted ISO9001, and some of the main products have passed
    CE certificate.
    The goal of OSETMAC is to provide high-quality products to our customers, assist your business and become one of the leading
    companies in woodwoking machines field.
    Upgrade Your Construction Process with SYS-320 Edge Banding Machine's Six Functions
    Upgrade Your Construction Process with SYS-320 Edge Banding Machine's Six Functions
    Upgrade Your Construction Process with SYS-320 Edge Banding Machine's Six Functions

    Our Services & Strength

    Our two factories been well-recognized as a professional woodworking machine producer, with such star products as sliding table
    saw, brush sanding machine, edge banding machine, etc. What’s more, the products have been sold out to more than 20 countries and
    regions in Middle East, Southeast Asia, Europe and South America.
