    7.75kW Power Automatic Brush Sanding Machine for MDF Sanding within OSETMAC's Range

    Ask Lasest Price
    Brand Name : OSETMAC
    Supply Ability : 5000 Set/Sets per Year
    Price : $5,980.00/sets 1-2 sets
    • Product Details
    • Company Profile

    7.75kW Power Automatic Brush Sanding Machine for MDF Sanding within OSETMAC's Range

    This kind of brush sanding machine has different layout of brush rollers in order to meet different sanding requirement. We also support customization for your special requirement. Z2Y2H2 is the most seller now because it can solve different directions sanding problem. 4 units, 6 units are most popular models, but 8 units and 10 units are also available if you need.
    7.75kW Power Automatic Brush Sanding Machine for MDF Sanding within OSETMAC's Range
    Model
    DT1000-4S (Y2H2)
    Max Working Width
    1000mm
    Working Thickness
    10-150mm
    Min Working Length
    ≥350mm
    Roller Speed
    Inverter Control
    Conveyor Speed
    5-20m/min
    Roller Diameter
    300mm
    Total Power
    7.75kw
    Straight Roller Motor
    2.2kw * 2
    Conveyor Motor
    1.1kw
    Lifting Motor
    0.55kw
    Disc Motor
    1.5kw
    Disc Swing Motor
    0.55kw
    Net Weight
    1110KG
    Using Dimension
    2950×1750×2160mm
    Wooden Case Dimension
    2400×1820×2150mm
    Wooden Case Weight
    150KG
    Gross Weight
    1260KG
    7.75kW Power Automatic Brush Sanding Machine for MDF Sanding within OSETMAC's Range
    7.75kW Power Automatic Brush Sanding Machine for MDF Sanding within OSETMAC's Range
    7.75kW Power Automatic Brush Sanding Machine for MDF Sanding within OSETMAC's Range
    7.75kW Power Automatic Brush Sanding Machine for MDF Sanding within OSETMAC's Range
    7.75kW Power Automatic Brush Sanding Machine for MDF Sanding within OSETMAC's Range
    Rotatory control board
    This brush sanding machine is very easy to control. Four units rollers' speed are controlled by two inverters and the speed of the rollers are easy to control by the switch on the control board. Workers can adjust the speed according to different materials.
    7.75kW Power Automatic Brush Sanding Machine for MDF Sanding within OSETMAC's Range

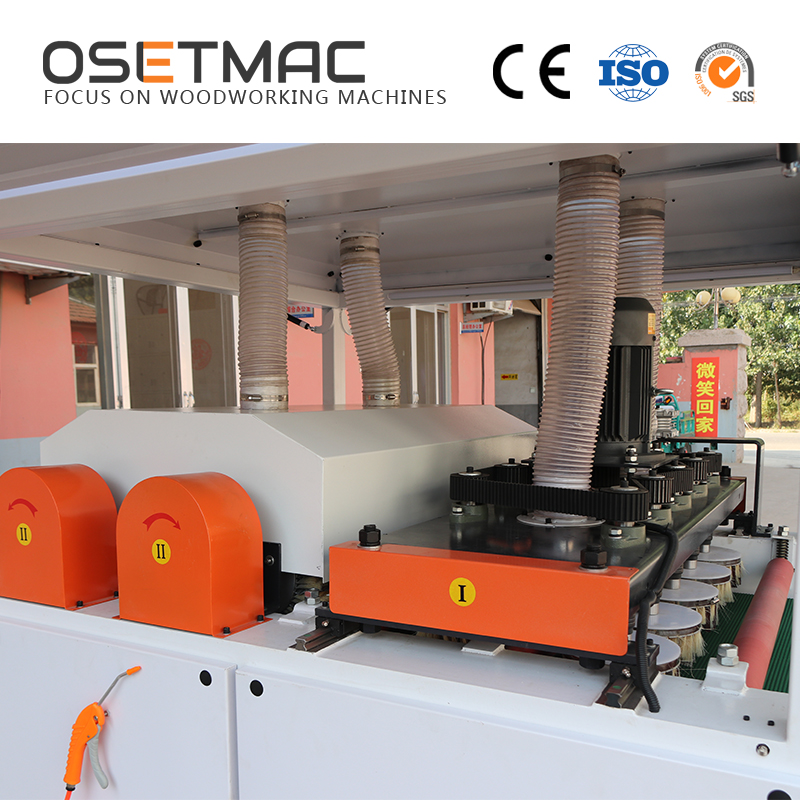

    Disc Brushes
    Two units of disc brushes (total 9 disc brushes) rotate in opposite directions, and the speed of the roller is adjustable by
    frequency control. With the board own movement and the disc brushes rotating, the machine can realize the sanding of uneven
    surface and corner from different angles.
    • Lengthways Rollers

    Two units of long brush rollers are counter-rotating and can be lifted individually, which guarantee the sanding effect of all-round uneven surface and R-angle.
    7.75kW Power Automatic Brush Sanding Machine for MDF Sanding within OSETMAC's Range
    Detailed Images
    7.75kW Power Automatic Brush Sanding Machine for MDF Sanding within OSETMAC's Range
    7.75kW Power Automatic Brush Sanding Machine for MDF Sanding within OSETMAC's Range
    7.75kW Power Automatic Brush Sanding Machine for MDF Sanding within OSETMAC's Range
    7.75kW Power Automatic Brush Sanding Machine for MDF Sanding within OSETMAC's Range
    Related Products
    Company Introduction
    OSETMAC focuses on woodworking machines for over 8 years. OSETMAC has two wholly-owned manufacturing factories--Qingdao Three One Three Machinery Company and Qingdao De Tai Wo Machinery Company. Our factories have been well-recognized as a professional woodworking machine producers. The main products of OSETMAC is sliding table saw, brush sanding machine, edge banding machine, wood drilling machine and CNC routers. What's more, our products have been sold to more than 30 countries and regions in Middle East, Southeast Asia, Europe and South America. OSETMAC is able to do our own R&D, deliver production task on time and provide customer service quickly. The manufacturing factories have already been granted ISO9001, and some of the main products have passed CE certificate.
