    Kdt Edge Banding Machine With Pre-milling SYS-468 for Gluing Pot Heating Power 2.4KW

    Ask Lasest Price
    Brand Name : OSETMAC
    Certification : CE ISO
    Supply Ability : 10000 Set/Sets per Year
    Price : $16,800.00/sets 1-3 sets
    • Product Details
    • Company Profile

    Kdt Edge Banding Machine With Pre-milling SYS-468 for Gluing Pot Heating Power 2.4KW

    Product Description

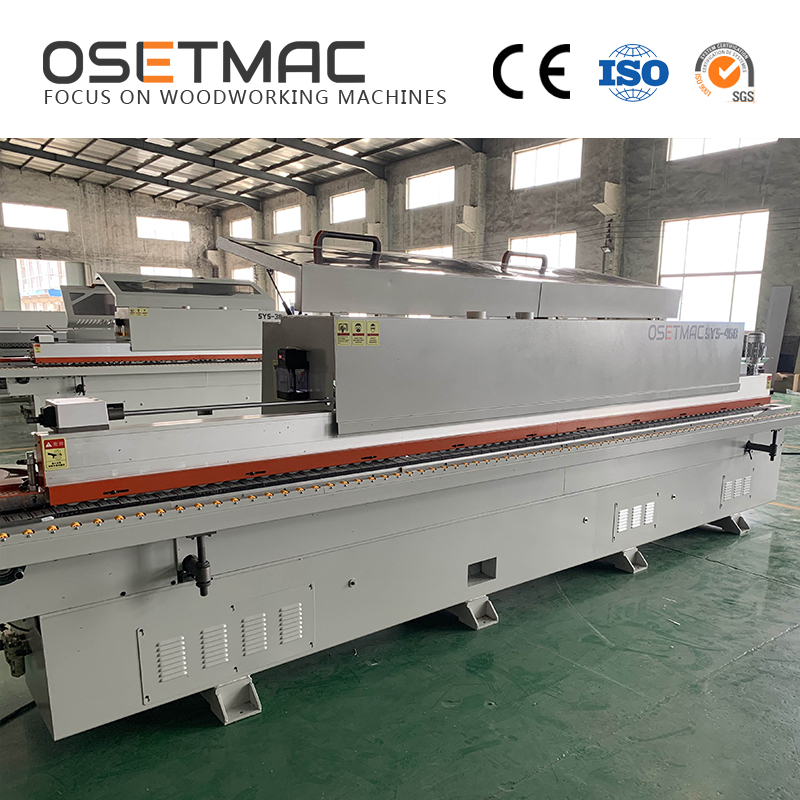

    Automatic Edge Banding Machine SYS-468
    Kdt Edge Banding Machine With Pre-milling SYS-468 for Gluing Pot Heating Power 2.4KW
    Kdt Edge Banding Machine With Pre-milling SYS-468 for Gluing Pot Heating Power 2.4KW
    Kdt Edge Banding Machine With Pre-milling SYS-468 for Gluing Pot Heating Power 2.4KW
    Kdt Edge Banding Machine With Pre-milling SYS-468 for Gluing Pot Heating Power 2.4KW
    Main Technical Parameter
    Parameters
    Model
    SYS-468
    Panel Thickness
    10-60mm
    Edge Band Thickness
    0.3-3mm
    Panel Width
    ≥60mm
    Panel Length
    ≥150mm
    Feeding Speed
    15-23m/min
    Working Pressure
    0.6Mpa
    Voltage
    380V/50HZ/3PH
    Gluing Motor
    0.75KW 50HZ 1400RPM
    End Cutting Motor
    0.37KW * 2 200HZ 12000RPM
    Trimming Motor
    0.75KW * 4 200HZ 12000RPM
    Corner Trimming Motor
    0.37KW * 2 200HZ 12000RPM
    0.75KW * 2 200HZ 12000RPM
    Buffing Motor
    0.37KW * 2 50HZ 1400RPM
    Conveyor Motor
    2.2KW
    Glue Pot Heating Power
    2.4KW
    Lighting Power
    0.05KW
    Lifting Motor
    0.25KW
    Total Power
    12.4KW
    Dimension
    5670*800*1620mm
    Wooden Crate Package
    5770*900*1720mm
    Our Advantages
    Kdt Edge Banding Machine With Pre-milling SYS-468 for Gluing Pot Heating Power 2.4KW
    Features of SYS-468
    Description: * 7 Functions: Gluing--End Cutting--Rough Trimming--Fine Trimming--Corner Rounding--Scraping--Buffing * Working Voltage: 380V/50HZ /3PH * DELTA inverter or MCGS inverter for your choice. * PLC Touch Screen * CC highspeed motor. * The conveyor speed can be adjusted from 13-25m/min *Honeywell travel switch, contactor, air switch. *Air Tac solenoid valve, air cylinder,oil-water seperator. * With automatic oil feeder. *14mm high strenth steel sheet for the whole machine. * In the machine is mounted lights. * Support customization for the machine appearance.
    Packing&Shipping
    Kdt Edge Banding Machine With Pre-milling SYS-468 for Gluing Pot Heating Power 2.4KW
    Kdt Edge Banding Machine With Pre-milling SYS-468 for Gluing Pot Heating Power 2.4KW
    Kdt Edge Banding Machine With Pre-milling SYS-468 for Gluing Pot Heating Power 2.4KW
    Kdt Edge Banding Machine With Pre-milling SYS-468 for Gluing Pot Heating Power 2.4KW
    After Sales Service
    Kdt Edge Banding Machine With Pre-milling SYS-468 for Gluing Pot Heating Power 2.4KW
    Our Service
    The whole machine is guaranteed for one year, providing installation and use video, lifelong technical support and parts service
    Company Introduction
    OSETMAC focuses on woodworking machines for over 8 years. OSETMAC has two wholly-owned manufacturing factories--Qingdao Three One
    Three Machinery Company and Qingdao De Tai Wo Machinery Company. Our factories have been well-recognized as a professional
    woodworking machine producers. The main products of OSETMAC is sliding table saw, brush sanding machine, edge banding machine,
    wood drilling machine and CNC routers. What’s more, our products have been sold to more than 30 countries and regions in Middle
    East, Southeast Asia, Europe and South America.OSETMAC is able to do our own R&D, deliver production task on time and provide
    customer service quickly. The manufacturing factories have already been granted ISO9001, and some of the main products have passed
    CE certificate.
    The goal of OSETMAC is to provide high-quality products to our customers, assist your business and become one of the leading
    companies in woodwoking machines field.
