    380V/220V/415V Woodworking Saw Sliding Table Panel Saw MJ6132S for Horizontal Cutting

    Ask Lasest Price
    Brand Name : OSETMAC
    Certification : CE ISO
    Supply Ability : 5000 Set/Sets per Year
    Price : $4,880.00/sets 1-9 sets
    • Product Details
    • Company Profile

    380V/220V/415V Woodworking Saw Sliding Table Panel Saw MJ6132S for Horizontal Cutting

    Product Description

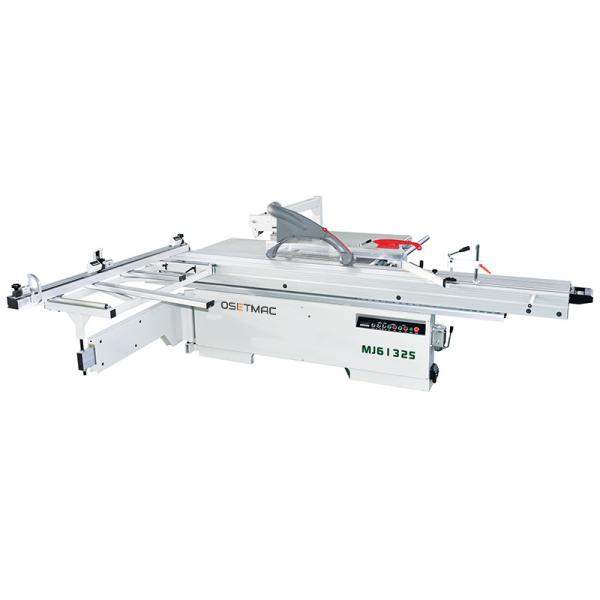

    Sliding Table Saw MJ6132S With full Digital Display for Wood Cutting
    380V/220V/415V Woodworking Saw Sliding Table Panel Saw MJ6132S for Horizontal Cutting
    380V/220V/415V Woodworking Saw Sliding Table Panel Saw MJ6132S for Horizontal Cutting
    380V/220V/415V Woodworking Saw Sliding Table Panel Saw MJ6132S for Horizontal Cutting
    380V/220V/415V Woodworking Saw Sliding Table Panel Saw MJ6132S for Horizontal Cutting
    380V/220V/415V Woodworking Saw Sliding Table Panel Saw MJ6132S for Horizontal Cutting

    Inner Structure

    This machine uses linear guideway to lift the
    saw blade which is more smooth and more durable. Aluminum shell motor makes sure its good heat dissipation. 25mm metal plate
    guarantees the compress strength and the high precision of the inter-machine, which can also reduce the shock of the machine.




    • Sliding Table Structure and Feature


    Our sliding table supplier is the same as SCM.Our table is made of fully-extruded, anodized aluminum that will stay square and true over many years of use. The guideway of movable table is steel bar structure. After quenching and chromizing, our table is more smooth and less resistance. The comb lock
    on the table makes it convenient to stop anywhere.
    380V/220V/415V Woodworking Saw Sliding Table Panel Saw MJ6132S for Horizontal Cutting
    Product Paramenters
    Sliding Table Dimension
    3200*390mm
    Cast Iron Table Dimension
    910*620*80mm
    length extension table
    905*680*70mm
    width cutting extension table
    640*680*70mm
    Main Saw Diameter
    300mm
    Main Saw Blade Diameter Maximum
    350mm
    Main Saw Bore Diameter
    30mm
    Max. Cutting Height With Bade at 90
    80/100mm(φ300/350)
    Max. Cutting Height With Bade at 45
    50/70mm(φ300/350)
    Main Motor Power
    5.5KW
    Main Blade Speed
    4000/6000RPM
    Scorning Saw Blade Diameter
    120mm
    Scorning Saw Bore Diameter
    20mm
    Scorning Saw Motor Power
    1.1KW
    Scorning Blade Speed
    8000RPM
    Max. Cutting Width
    1250mm
    Max. Cutting Length
    3100mm
    Blade Tilting Adjustment
    0-45°
    Main Saw Height Adjustment
    Electric
    Scorning Saw Height Adjustment
    Electric
    Dust Guard Outlet Diameter
    80mm
    Dust System Outlet Diameter
    100mm
    Dimension of Wood Packing Carton
    2250*1200*1100mm(Main Crate )
    3400*450*290mm(Sliding Table)
    Dimension
    3250*3450*900mm
    G. W.
    800KG
    Packing&Shipping
    380V/220V/415V Woodworking Saw Sliding Table Panel Saw MJ6132S for Horizontal Cutting
    380V/220V/415V Woodworking Saw Sliding Table Panel Saw MJ6132S for Horizontal Cutting
    380V/220V/415V Woodworking Saw Sliding Table Panel Saw MJ6132S for Horizontal Cutting
    380V/220V/415V Woodworking Saw Sliding Table Panel Saw MJ6132S for Horizontal Cutting
    Detailed Images
    Full digital display with big dust cover to make sure better dust collection effect and keep safety.
    All bearings in our sliding table saw are imported SKF brand.
    Big dust cover is optional in this sliding table saw. This device can make sure better dust collection effect and keep safety.
    The main saw blade and scoring saw blade are both electric lifting, which makes it easy to operate. The tilting function is also electric control.
    380V/220V/415V Woodworking Saw Sliding Table Panel Saw MJ6132S for Horizontal Cutting
    380V/220V/415V Woodworking Saw Sliding Table Panel Saw MJ6132S for Horizontal Cutting
    380V/220V/415V Woodworking Saw Sliding Table Panel Saw MJ6132S for Horizontal Cutting
    380V/220V/415V Woodworking Saw Sliding Table Panel Saw MJ6132S for Horizontal Cutting
    Company Introduction
    OSETMAC focuses on woodworking machines for over 8 years. OSETMAC has two wholly-owned manufacturing factories--Qingdao Three One Three Machinery Company and Qingdao De Tai Wo Machinery Company. Our factories have been well-recognized as a professional woodworking machine producers. The main products of OSETMAC is sliding table saw, brush sanding machine, edge banding machine, wood drilling machine and CNC routers. What's more, our products have been sold to more than 30 countries and regions in Middle East, Southeast Asia, Europe and South America. OSETMAC is able to do our own R&D, deliver production task on time and provide customer service quickly. The manufacturing factories have already been granted ISO9001, and some of the main products have passed CE certificate.
