    SYS-360 6 Function Automatic Edge Bander for Woodworking Power 7.4KW Weight 1200 kg

    Ask Lasest Price
    Brand Name : OSETMAC
    Supply Ability : 10000 Set/Sets per Year
    Price : $6,900.00/sets 1-3 sets
    • Product Details
    • Company Profile

    SYS-360 6 Function Automatic Edge Bander for Woodworking Power 7.4KW Weight 1200 kg

    Product Description

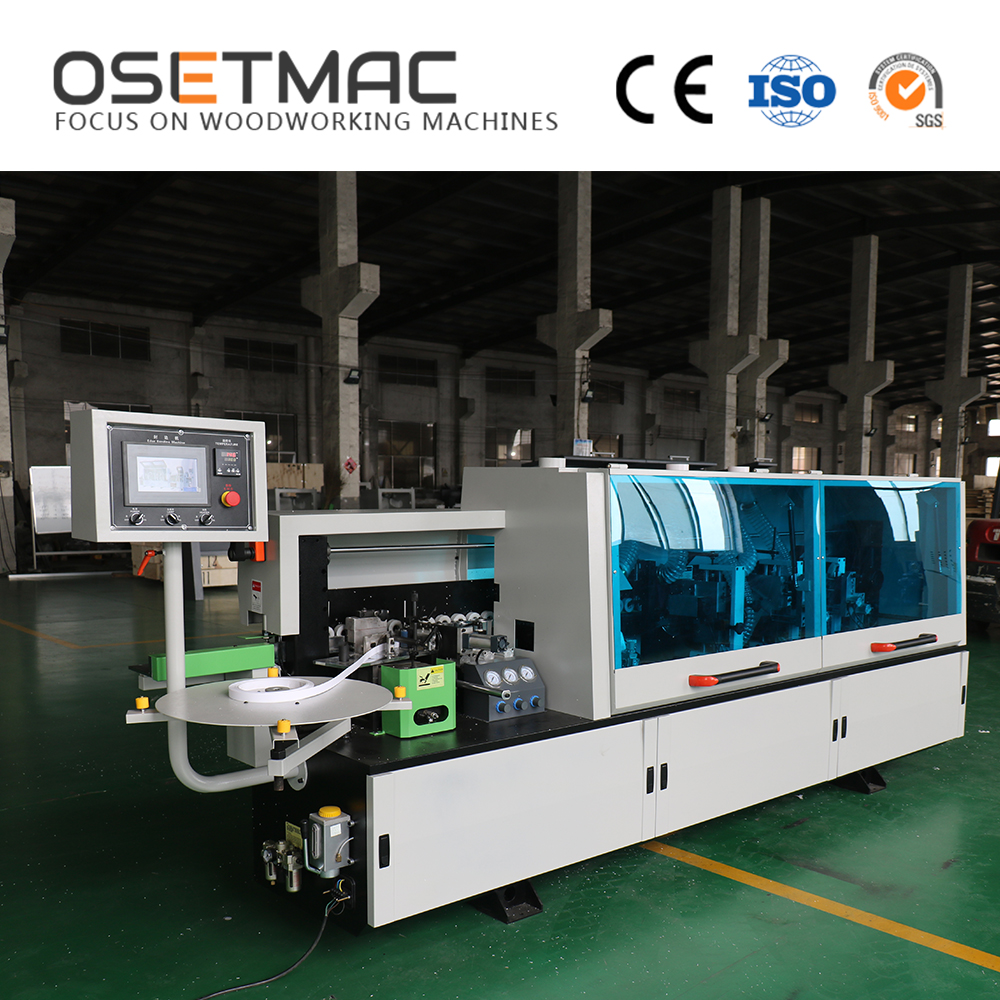

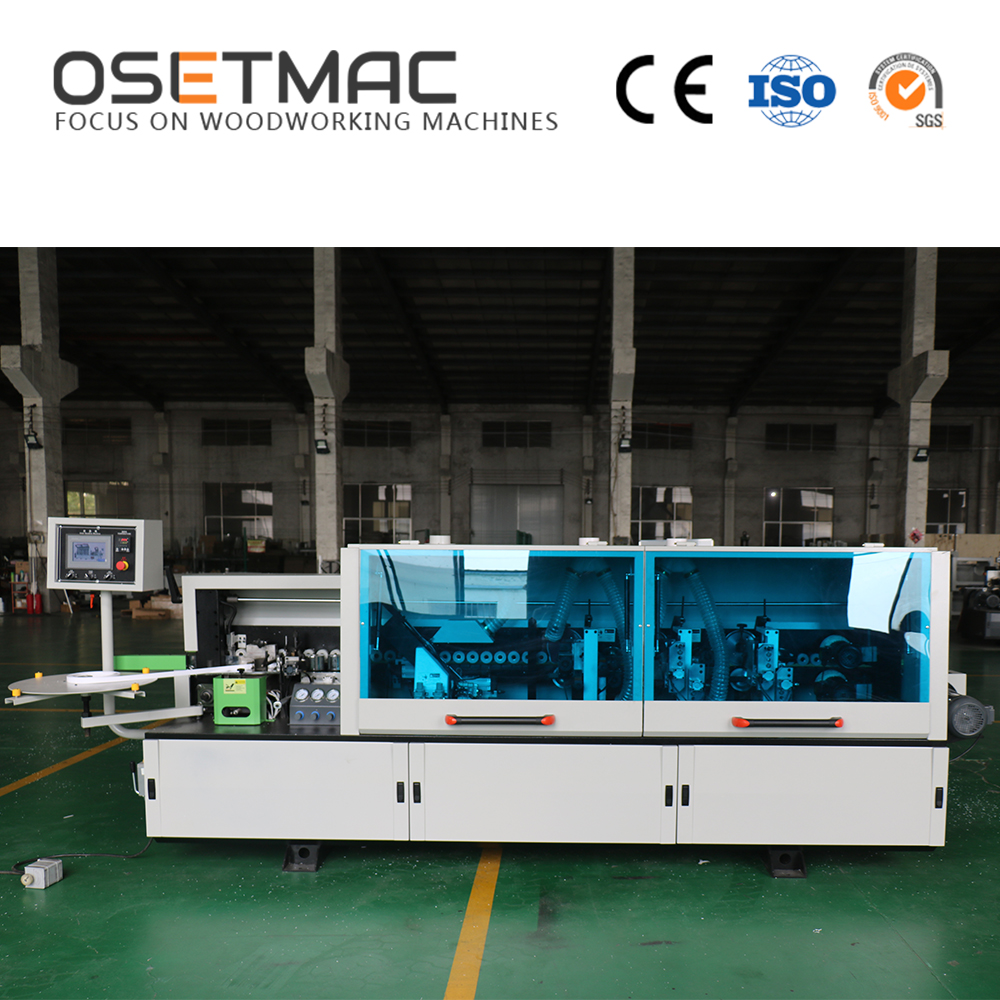

    Automatic Edge Banding Machine SYS-360
    SYS-360 6 Function Automatic Edge Bander for Woodworking Power 7.4KW Weight 1200 kg
    SYS-360 6 Function Automatic Edge Bander for Woodworking Power 7.4KW Weight 1200 kg
    SYS-360 6 Function Automatic Edge Bander for Woodworking Power 7.4KW Weight 1200 kg
    SYS-360 6 Function Automatic Edge Bander for Woodworking Power 7.4KW Weight 1200 kg
    Main Technical Parameter
    SPECIFICATIONS
    Model
    SYS-360
    Panel Thickness
    10-60mm
    Edge Band Thickness
    0.3-3mm
    Panel Width
    ≥60mm
    Panel Length
    ≥150mm
    Feeding Speed
    15m/min
    Working Pressure
    0.6Mpa
    Voltage
    380V/50HZ/3PH
    Gluing Motor
    0.37KW/50HZ/1400RPM
    End Cutting Motor
    0.37KW * 2/200HZ/12000RPM
    Rough Trimming Motor
    0.55KW * 2/200HZ/12000RPM
    Fine Trimming Motor
    0.55KW * 2/200HZ/12000RPM
    Buffing Motor
    0.37KW * 2/50HZ/1400RPM
    Conveyor Motor
    1.5KW
    Glue Pot Heating Power
    1.5KW
    Assistant Heating Power
    0.3KW
    Lighting Power
    0.05KW
    Total Power
    7.4KW
    Dimension
    4100x800x1560mm
    Wooden Case Package
    3900x870x1700mm
    Our Advantages
    SYS-360 6 Function Automatic Edge Bander for Woodworking Power 7.4KW Weight 1200 kg

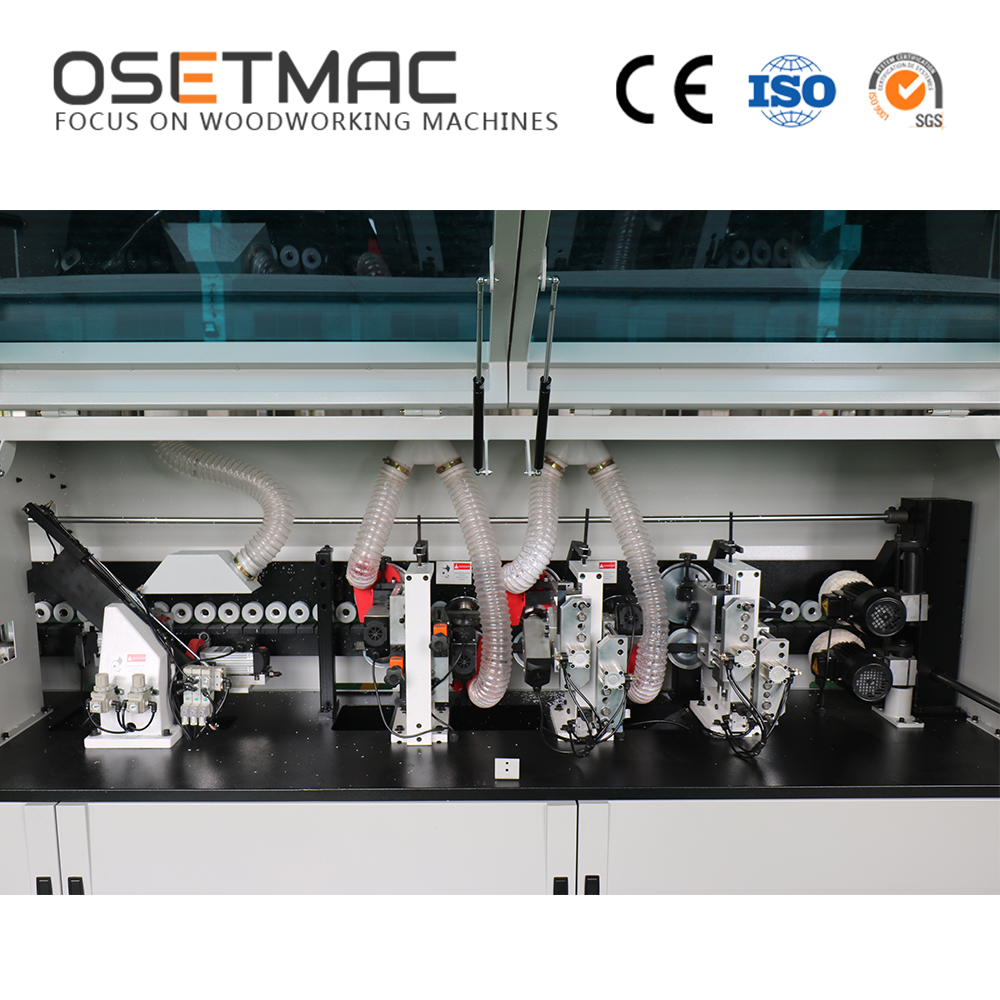

    Features of SYS-360
    Descriptions * 6 Functions: Gluing--End Cutting--Rough Trimming--Fine Trimming--Scraping--Buffing * Working Voltage: 380V/50HZ /3PH * PLC Touch Screen * CC highspeed motor. *Honeywell travel switch, contactor, air switch. *Air Tac solenoid valve, air cylinder,oil-water seperator. *14mm high strenth steel sheet for the whole machine. * In the machine is mounted lights. * Support customization for the machine appearance.
    Packing&Shipping
    SYS-360 6 Function Automatic Edge Bander for Woodworking Power 7.4KW Weight 1200 kg
    SYS-360 6 Function Automatic Edge Bander for Woodworking Power 7.4KW Weight 1200 kg
    SYS-360 6 Function Automatic Edge Bander for Woodworking Power 7.4KW Weight 1200 kg
    SYS-360 6 Function Automatic Edge Bander for Woodworking Power 7.4KW Weight 1200 kg
    After Sales Service
    SYS-360 6 Function Automatic Edge Bander for Woodworking Power 7.4KW Weight 1200 kg
    Our Service
    The whole machine is guaranteed for one year, providing installation and use video, lifelong technical support and parts service
    Company Introduction
    OSETMAC focuses on woodworking machines for over 8 years. OSETMAC has two wholly-owned manufacturing factories--Qingdao Three One
    Three Machinery Company and Qingdao De Tai Wo Machinery Company. Our factories have been well-recognized as a professional
    woodworking machine producers. The main products of OSETMAC is sliding table saw, brush sanding machine, edge banding machine,
    wood drilling machine and CNC routers. What’s more, our products have been sold to more than 30 countries and regions in Middle
    East, Southeast Asia, Europe and South America.OSETMAC is able to do our own R&D, deliver production task on time and provide
    customer service quickly. The manufacturing factories have already been granted ISO9001, and some of the main products have passed
    CE certificate.
    The goal of OSETMAC is to provide high-quality products to our customers, assist your business and become one of the leading
    companies in woodwoking machines field.
