Woodworking Tool 20mm Scorning Saw Bore Diameter and 0-45° Blade Tilting Adjustment

QINGDAO OSET INTERNATIONAL TRADING CO., LTD.
Trust Seal
Verified Supplier
Credit Check
Supplier Assessment
Contact Now
  • Product Details
  • Company Profile

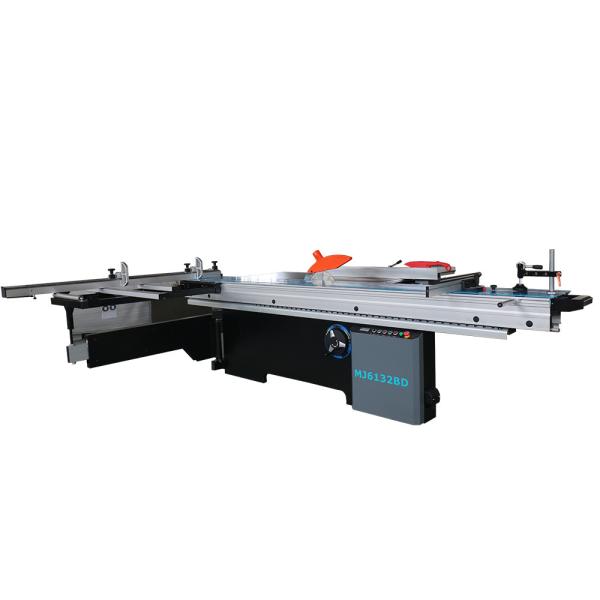

Woodworking Tool 20mm Scorning Saw Bore Diameter and 0-45° Blade Tilting Adjustment

Automatic Vertical Sliding Table Saw for Wood Cutting Panel New High-Accuracy Woodworking Tool with Core Motor Component

Woodworking Tool 20mm Scorning Saw Bore Diameter and 0-45° Blade Tilting Adjustment

Product Description

* This machine uses linear guideway to lift the saw blade.
* All bearings in this machine are all imported SKF brand.
* The table is made of fully-extruded, anodized aluminum.
* With cast-iron main table and broaden extension table.
* The main saw blade lifting is electric control.
* The hand wheel for saw blade tilting is very light.
* Fine adjustment range is between 0-10mm.
* Digital Readout is available according to your requirement.
* There are comb lock on the table.


Parameters
Sliding Table Dimension3200*390mm
Cast Iron Table Dimension910*620*80mm
length extension table905*680*70mm
width cutting extension table640*680*70mm
Main Saw Diameter300mm
Main Saw Blade Diameter Maximum350mm
Main Saw Bore Diameter30mm
Max. Cutting Height With Bade at 9080/100mm(φ300/350)
Max. Cutting Height With Bade at 4550/70mm(φ300/350)
Main Motor Power5.5KW
Main Blade Speed4000/6000RPM
Scorning Saw Blade Diameter120mm
Scorning Saw Bore Diameter20mm
Scorning Saw Motor Power1.1KW
Scorning Blade Speed8000RPM
Max. Cutting Width1250mm
Max. Cutting Length3100mm
Blade Tilting Adjustment0-45°
Main Saw Height AdjustmentElectric
Scorning Saw Height AdjustmentManual
Dust Guard Outlet Diameter80mm
Dust System Outlet Diameter100mm
Dimension of Wood Packing Carton2250*1200*1100mm(Main Crate )
3400*450*290mm(Sliding Table)
Dimension3250*3450*900mm
G. W.800KG

Woodworking Tool 20mm Scorning Saw Bore Diameter and 0-45° Blade Tilting Adjustment


Woodworking Tool 20mm Scorning Saw Bore Diameter and 0-45° Blade Tilting AdjustmentWoodworking Tool 20mm Scorning Saw Bore Diameter and 0-45° Blade Tilting Adjustment

Packaging & Shipping

Woodworking Tool 20mm Scorning Saw Bore Diameter and 0-45° Blade Tilting Adjustment


Company Information

OSETMAC focuses on woodworking machines for over 8 years. OSETMAC has wholly-owned manufacturing factories--Qingdao Three One Three Machinery Company. Our factories have been well-recognized as a professional woodworking machine producers. The main products of OSETMAC is sliding table saw, brush sanding machine, edge banding machine, wood drilling machine and CNC routers. What's more, our products have been sold to more than 30 countries and regions in Middle East, Southeast Asia, Europe and South America. OSETMAC is able to do our own R&D, deliver production task on time and provide customer service quickly. The manufacturing factories have already been granted ISO9001, and some of the main products have passed CE certificate.

Woodworking Tool 20mm Scorning Saw Bore Diameter and 0-45° Blade Tilting Adjustment


FAQ

1. Who Are We?
We are based in Shandong, China, start from 2018,sell to Southeast Asia(15.00%),Northern Europe(15.00%),North America(10.00%),Eastern Europe(10.00%),Western Europe(10.00%),Southern Europe(10.00%),South America(5.00%),Mid East(5.00%),Eastern Asia(5.00%),Central America(5.00%),South Asia(5.00%),Domestic Market(5.00%). There are total about 11-50 people in our office.

2. How Can We Guarantee Quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;

3. What Can You Buy From Us?
SLIDING TABLE SAW,EDGE BANDING MACHINE,SANDING MACHINE,CNC ROUTER,WOODWORKING MACHINES

4. Why Should You Buy From Us Not From Other Suppliers?
Professional technical team and perfect careful after-sale service

5. What Services Can We Provide?
Accepted Delivery Terms: FOB,CFR,CIF,EXW;
Accepted Payment Currency:USD,CNY;
Accepted Payment Type: T/T,L/C,Western Union,Cash;
Language Spoken:English,Chinese
