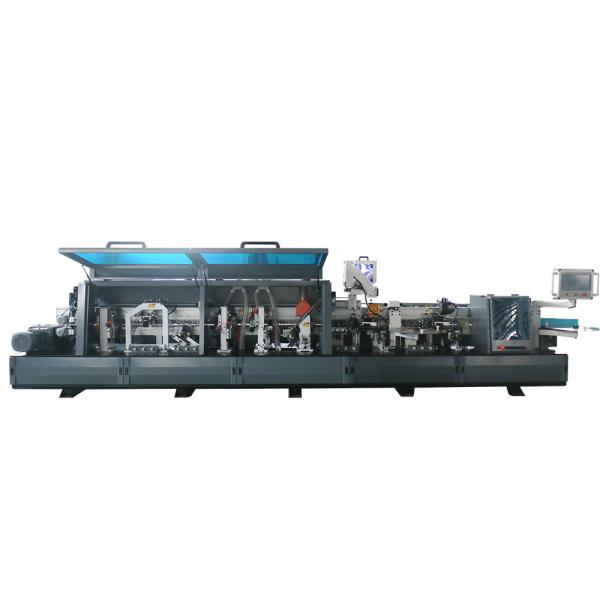

    50HZ Gluing Motor Wood Edge Banding Machine for Wood Based Panels Machinery

    Product Description

    Wood Edge Banding Machine for Wood Based Panels Machinery

    50HZ Gluing Motor Wood Edge Banding Machine for Wood Based Panels Machinery
    * 8 Functions: Pre-milling--Gluing--End Cutting--Rough Trimming--Fine Trimming--Corner Rounding--Scraping--Buffing * Working Voltage: 380V/50HZ /3PH * DELTA inverter or MCGS inverter for your choice. * PLC Touch Screen * CC highspeed motor. * The conveyor speed can be adjusted from 13-25m/min *Honeywell travel switch. *Air Tac solenoid valve, air cylinder,oil-water seperator. * With automatic oil feeder. *14mm high strenth steel sheet for the whole machine. * In the machine is mounted lights. * Support customization for the machine appearance.

    Machine
    Function
    Pre-Milling
    Gluing
    End Cut
    Rough Trim
    Fine Trim
    Corner Round
    Scraping
    Buffing
    SYS-300
    SYS-320
    SYS-320A
    SYS-320B
    SYS-360
    SYS-365J
    SYS-368J
    SYS-365
    SYS-368
    SYS-468
    SYS-568
    SYS-868
    ★★
    Specification
    Model
    SYS-668
    Sheet Thickness
    10-60mm
    Edge Band Thickness
    0.4-3mm
    Sheet Width
    ≥ 40mm
    Sheet Length
    ≥ 150mm
    Transfer Speed
    15-23m/min
    Working Pressure
    0.6-0.8Mpa
    Voltage
    380V/50HZ/3PH
    Total Power
    20.17KW
    Size
    7300*830*1610mm
    Weight
    3000KG
    50HZ Gluing Motor Wood Edge Banding Machine for Wood Based Panels Machinery
    50HZ Gluing Motor Wood Edge Banding Machine for Wood Based Panels Machinery
    50HZ Gluing Motor Wood Edge Banding Machine for Wood Based Panels Machinery
    Packing & Delivery
    50HZ Gluing Motor Wood Edge Banding Machine for Wood Based Panels Machinery
    50HZ Gluing Motor Wood Edge Banding Machine for Wood Based Panels Machinery
    Company Profile
    50HZ Gluing Motor Wood Edge Banding Machine for Wood Based Panels Machinery
    50HZ Gluing Motor Wood Edge Banding Machine for Wood Based Panels Machinery
    50HZ Gluing Motor Wood Edge Banding Machine for Wood Based Panels Machinery
    OSETMAC focuses on woodworking machines for over 8 years.OSETMAC has wholly-owned manufacturing factories--Qingdao Three One Three Machinery Company. Our factories have been well-recognized as a professional woodworking machine producers. The main products of OSETMAC is sliding table saw, brush sanding machine, edge banding machine, wood drilling machine and CNC routers. What's more, our products have been sold to more than 30 countries and regions in Middle East, Southeast Asia, Europe and South America. OSETMAC is able to do our own R&D, deliver production task on time and provide customer service quickly. The manufacturing factories have already been granted ISO9001, and some of the main products have passed CE certificate.
    Certifications
    50HZ Gluing Motor Wood Edge Banding Machine for Wood Based Panels Machinery
    FAQ
    1. who are we?
    We are based in Shandong, China, start from 2018,sell to Southeast Asia(15.00%),Northern Europe(15.00%),North America(10.00%),Eastern Europe(10.00%),Western Europe(10.00%),Southern Europe(10.00%),South America(5.00%),Mid East(5.00%),Eastern Asia(5.00%),Central America(5.00%),South Asia(5.00%),Domestic Market(5.00%). There are total about 11-50 people in our office.

    2. how can we guarantee quality?
    Always a pre-production sample before mass production;
    Always final Inspection before shipment;

    3.what can you buy from us?
    SLIDING TABLE SAW,EDGE BANDING MACHINE,SANDING MACHINE,CNC ROUTER,WOODWORKING MACHINES

    4. why should you buy from us not from other suppliers?
    null

    5. what services can we provide?
    Accepted Delivery Terms: FOB,CFR,CIF,EXW;
    Accepted Payment Currency:USD,CNY;
    Accepted Payment Type: T/T,L/C,Western Union,Cash;
    Language Spoken:English,Chinese
