Brand Name : | OSETMAC |
Price : | $4,850.00/pieces 1-1 pieces |
Model | KN-620 |
Place of Origin | China |
Condition | New |
Type | Edge Banding Machine |
Cleaning, Gluing, Fine Trimming, End Trimming | |
11m/min | |
Brand Name | OSETMAC |
Voltage | 380V three phase or as your request |
Dimension(L*W*H) | 1550x1400x1350mm |
Certification | CE, ISO |
Power (kW) | 5.3 |
Weight (KG) | 280kg |
Applicable Industries | Building Material Shops, Machinery Repair Shops, Manufacturing
Plant, Farms, Home Use, Construction works , Other, Furniture
maker, Furniture shops, Furniture factory, Cabinet shop, Cabinet
maker, Cabinet factory, Interior designer |
Warranty | 1 Year |
Key Selling Points | Multifunctional |
After Warranty Service | Video technical support, Online support, Spare parts |
Local Service Location | Egypt, Canada, Turkey, United States, Brazil, Peru, Mexico,
Malaysia, Australia, Chile, UAE, Ireland |
Showroom Location | Egypt, Canada, Turkey, United States, Philippines, Brazil, Peru,
India, Mexico, Russia, Chile, UAE, Ireland |
Marketing Type | New Product 2021 |
Machinery Test Report | Not Available |
Video outgoing-inspection | Provided |
Warranty of core components | 1 Year |
Core Components | Motor, PLC, Other |

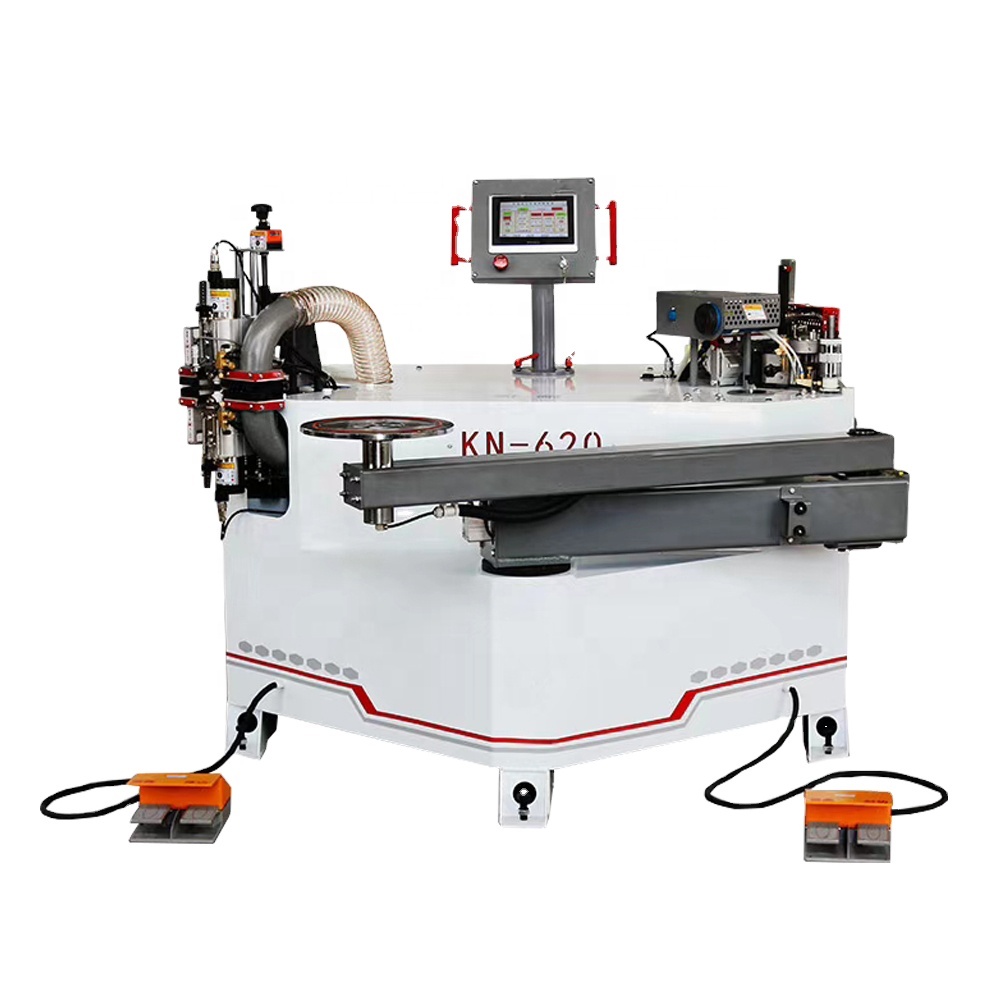

Name | Curve Straight Edge Banding Machine |
MODEL: | KN-620 |
Panel Thickness: | 8-70mm |
Edge Band Thickness: | 0.3-3mm |
Maximum Side Length of Square Plate: | 1800mm |
Maximum Diameter of Circular Plate: | 2500mm |
Maximum Diagonal Length of Rectangular Plate: | 2500mm |
Maximum Side Length of L-shaped Plate: | 1600mm |
Feeding Speed: | 0-18cm/s |
Working Pressure: | 0.6-0.8Mpa |
Voltage: | 380V/50HZ/3PH |
Gluing Motor: | 0.18KW 220V |
Tracking Motor: | 0.06KW 220V |
Trimming Motor: | 220V 400HZ 24000RPM |
PLC: | INOVANCE HIU-XP |
Touch Screen: | INOVANCE IT6000 |
Frequency converter: | INOVANCE MD200 2.2KW |
Total Power: | 5.3KW |
Machine Dimension: | 1550x1400x1350mm |
![]() |
