    Cut Wood Horizontal 380v Woodworking Sliding Panel Saw

    Ask Lasest Price
    Brand Name : OSET
    Model Number : MJ6130TY
    Certification : ISO CE
    Price : Negotiable
    Payment Terms : L/C, T/T, Western Union
    Supply Ability : 5000sets per year
    Delivery Time : 5-15workdays
    • Product Details
    • Company Profile

    Cut Wood Horizontal 380v Woodworking Sliding Panel Saw

    Industrial Woodworking Sliding Panel Saw Cut Wood MJ6132TY


    Cut Wood Industrial Commercial Sliding Panel Saw With Scoring Blade MJ6130TY


    Cut wood Industrial Commercial Sliding Panel Saw With scoring blade for furniture & cutting panel Woodworking machine


    Inner Structure

    This machine uses linear guideway to lift the saw blade which is more smooth and more

    durable. Aluminum shell motor makes sure its good heat dissipation. 25mm metal plate

    guarantees the compressive strength and the high precision of the inter-machine, which

    can also reduce the shock of the machine

    2.Main Saw and Scoring Saw Spindle

    After the heating processing and dynamic balancing treatment, our saw spindle will never deformation. With high quality belt and motor, our machine has lower noise, higher precision and higher efficiency of power transmission.

    3.SKF Bearing of Sliding panel saw

    All bearings in the wood working machine are all imported SKF brand, which has lower sliding resistance and power consumption comparing with ordinary bearings.

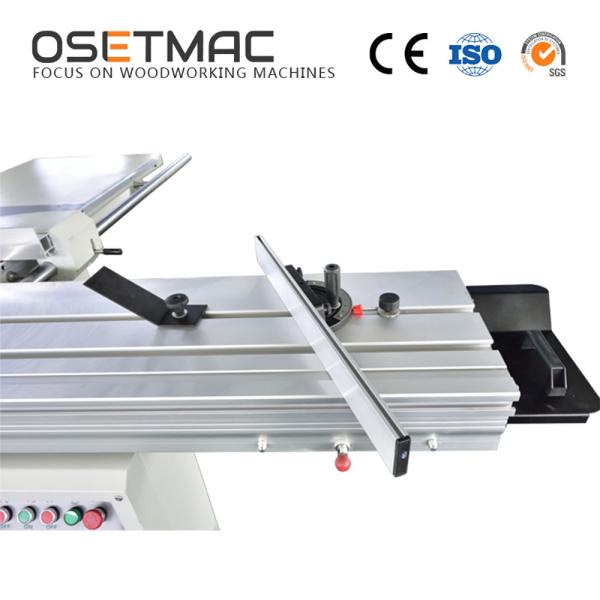

    4.​Sliding Table Structure and Feature

    Our table is made of fully-extruded, anodized aluminum that will stay square and true over many years of use. The guideway of movable table is steel bar structure. After quenching and chromizing, our table is more smooth and less resistance. The comb lock on the table makes it convenient to stop anywhere.

    5.Cast-iron Main Table and Extension Table(sliding panel saw )

    After precision casting and flat grinder treatment, our cast-iron table greatly reduces the friction between the workpiece and the table, which makes sure of the cutting accuracy.

    6.Supporting Arm and Cross Cut Table

    Our support arm uses 2.5mm square steel tube, which insure the stationary movement of sliding table when the machine has heavy loading. It also has angle ruler in the cross cut table.

    7.controlling board

    The controlling board is easy to operate. The rotation of hand wheel for saw blade tilting is very light and handy.

    Cut Wood Horizontal 380v Woodworking Sliding Panel Saw


    8.Rip Fence Fine Adjustment

    Fine adjustment range is between 0-10mm, which makes the saw cutting size more precise. It is also very easily to adjust.

    9.Movable Positioning Stops and Cross Cut Fence

    The positioning stops are made of high quality aluminum alloy with extrusion and precision processing, which is very durability.

    10.​Orange Dust Hood and Riving Knife

    The orange dust hood is fixed on the riving knife, which is very easy to adjust. It also has the fuctions of warning, protection and dust absorption.

    11.hand swage

    12.saw blade guard

    Optional Device

    1. Altendour-structure Dust Cover

    2. Digital Readout


    Note: The price in the price list does not including these optional devices.


    More Trading Details

    ModelMJ6130TY
    Payment TermsT/T
    Delivery TimeNegotiable (7-30DAYS)
    FOB PortQingdao Port, China
    Country of OriginChina
    HS CODE8465910000
    CertificateCE ISO

    Our Certificate :

    We have CE and ISO certificate ,Think All our models can meet the quality level in your market .


    Different outlook for different customer

    Our Warehouse

    Applications:


    This machine apply to processing all kinds of density boards, shaving boards, wood-based panels, ABS panels, PVC panels, organic glass plates and solid wood and others with wood structure and similar hardness.

    Specifications:

    Dimension of sliding table3000*375mm
    Gross cut capacity3000mm
    Width of cut between saw blade and rip fence1250mm
    Saw blade diameter300mm
    Height of cut80mm
    Height of cut with saw blade at 45 degree55MM
    Speed of main saw spindle4000/6000rpm(φ300/350)
    Main spindle diameter30mm
    Tilting saw Blade0-45°
    Main Motor4kw(5.5kw)
    Scoring Saw Blade diameter120mm
    Speed of scoring saw blade8000r/min
    Scoring spindle diameter20mm
    Scoring motor0.75kw
    Net Weight680kg
    Gross Weight(with wooden package)780kg
    Overall Dimensions3050*3150*900mm

    Warranty
    1 year

    Competitive Advantage:

    1. It can load 24 sets in one 40’ GP Container and 10 sets in one 20 GP container.
    2. We can change the outlook of the machine according to your requirement.
    3. Any size of the sliding table can be produced and the longest customized size is 4200mm.
    4. We have two wholly-owned manufacturing factories and can make sure of the delivery time.
