High Precision woodworking sliding table saw MJ6116TY cuting wood machine for making furniture

Quick Detail:

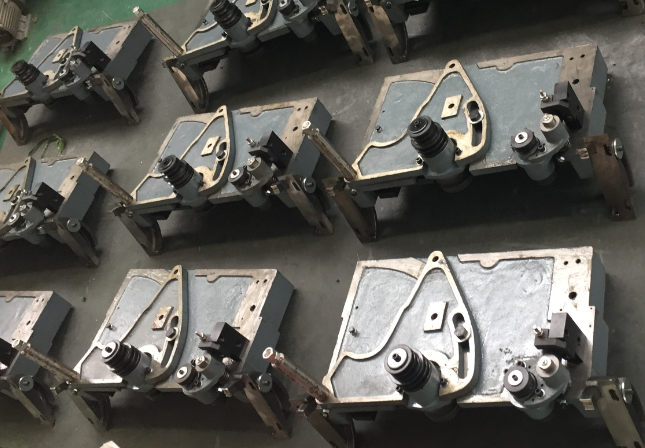

Inner Structure

This machine uses linear guideway to lift the saw blade which is more smooth and more

durable. Aluminum shell motor makes sure its good heat dissipation. 25mm metal plate

guarantees the compressive strength and the high precision of the inter-machine, which

can also reduce the shock of the machine

2.Main Saw and Scorning Saw Spindle

After the heating processing and dynamic balancing treatment, our saw spindle will never deformation. With high quality belt and motor, our machine has lower noise, higher precision and higher efficiency of power transmission.

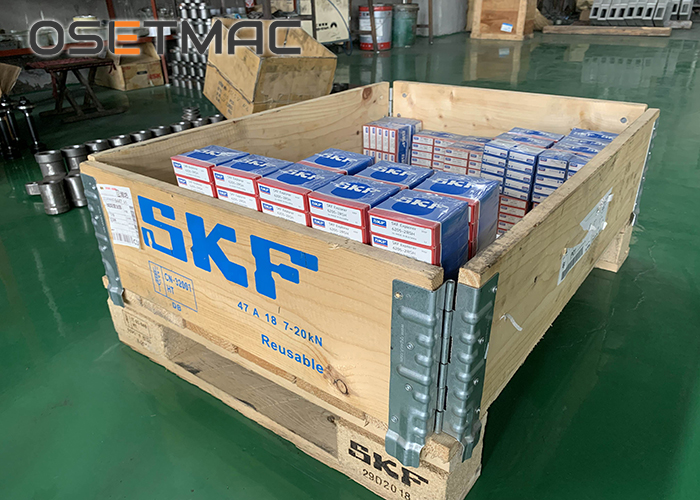

3.SKF Bearing

All bearings in this machine are all imported SKF brand, which has lower sliding resistance and power consumption comparing with ordinary bearings.

4.​Sliding Table Structure and Feature

Our table is made of fully-extruded, anodized aluminum that will stay square and true over many years of use. The guideway of movable table is steel bar structure. After quenching and chromizing, our table is more smooth and less resistance. The comb lock on the table makes it convenient to stop anywhere. The length of table is from 1300-4200mm according to your requirements.

5.Cast-iron Main Table and Extension Table

(sliding panel saw )

After precision casting and flat grinder treatment, our cast-iron table greatly reduces the friction between the workpiece and the table, which makes sure of the cutting accuracy.

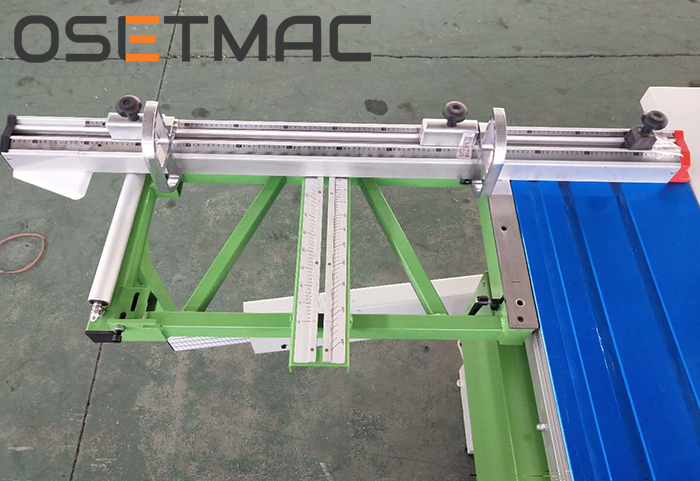

6.Supporting Arm and Cross Cut Table

Our support arm uses 2.5mm square steel tube, which insure the stationary movement of sliding table when the machine has heavy loading. It also has angle ruler in the cross cut table.

7.controlling board

The controlling board is easy to operate. The rotation of hand wheel for saw blade tilting is very light and handy. And digital readout is available if you need.

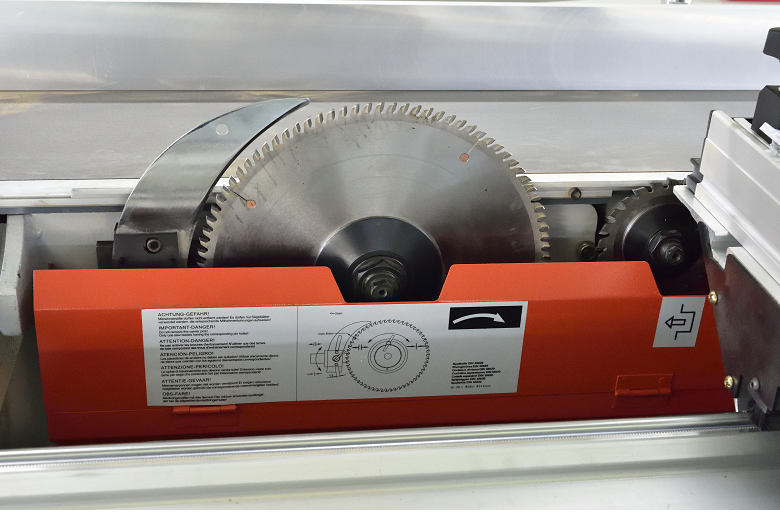

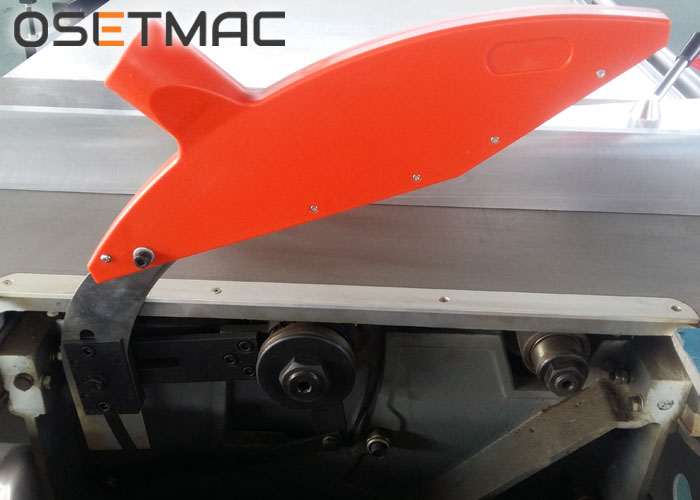

8.Orange Dust Hood and Riving Knife

The orange dust hood is fixed on the riving knife, which is very easy to adjust. It also has the fuctions of warning, protection and dust absorption.

9.Rip Fence Fine Adjustment

Fine adjustment range is between 0-10mm, which makes the saw cutting size more precise. It is also very easily to adjust.

10.Hand Swage

11.saw blade guard

Optional Device

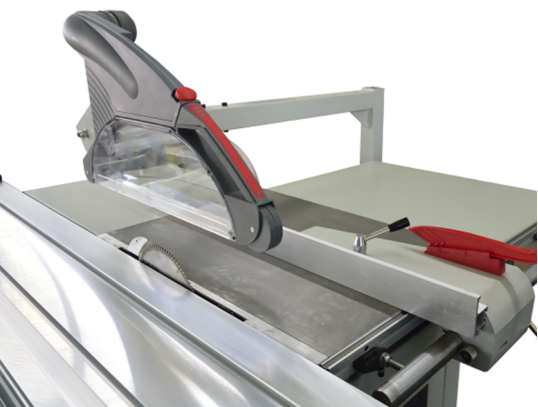

1. Altendour-structure Dust Cover

2. Digital Readout

3.Oil Injector

Note: The price in the price list does not including these optional devices.

More Trading Details

Our Certificate :

We have CE and ISO certificate ,Think All our models can meet the quality level in your market .

Different outlook for different customer

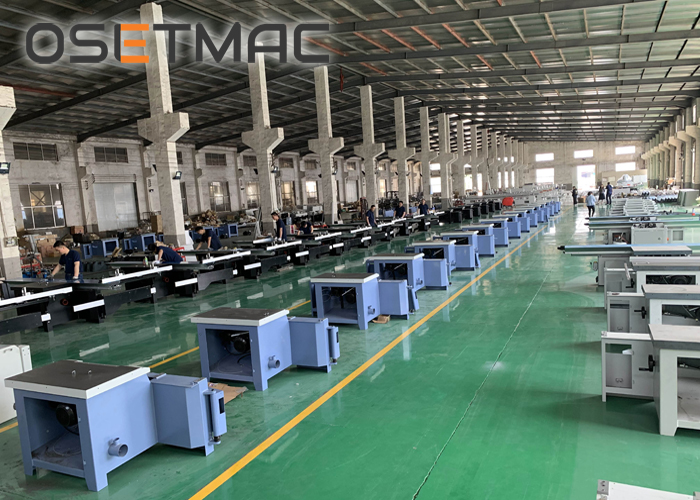

Our Warehouse

Applications:

This machine apply to processing all kinds of density boards, shaving boards, wood-based panels, ABS panels, PVC panels, organic glass plates and solid wood and others with wood structure and similar hardness.

Main Technical Parameter :

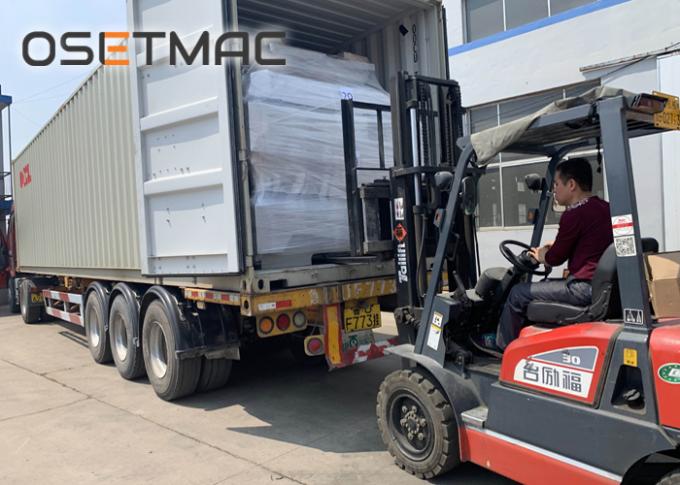

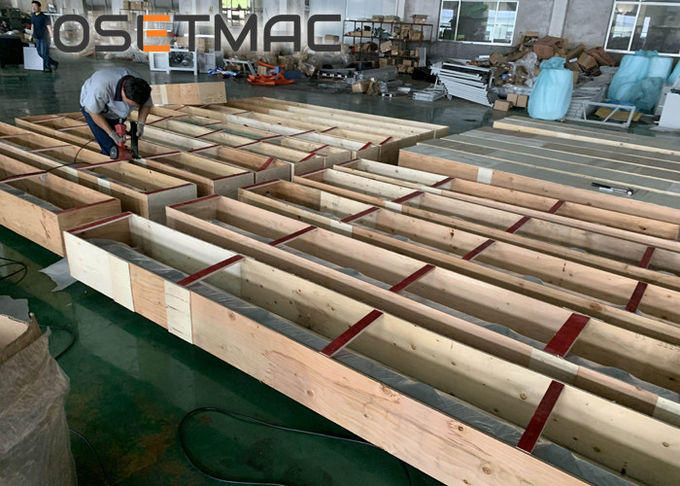

Packing and Loading container

​

Contact us for more details !!

OSETMAC focuses on  woodworking machines for over 8 years. OSETMAC has one wholly-owned manufacturing factory--Qingdao Three One Three Machinery Company. Our factories have been well-recognized as a professional woodworking machine producers. The main products of OSETMAC is sliding table saw, brush sanding machine, edge banding machine, wood drilling machine and CNC routers. What’s more, our products have been sold to more than 30 countries and regions in Middle East, Southeast Asia, Europe and South America.OSETMAC is able to do our own R&D, deliver production task on time and provide customer service quickly. The manufacturing factories have already been granted ISO9001, and some of the main products have passed CE certificate.
The goal of OSETMAC is to provide high-quality products to our customers, assist your business and become one of the leading companies in woodwoking machines field.
