    Industrial Woodworking Sliding Panel Saw Table Saw MJ6132AD2800*1100*1200mm

    Ask Lasest Price
    Model Number : MJ6132AD
    Brand Name : OSETMAC
    Certification : CE
    Price : Negotiable
    Delivery Time : 15 days
    Payment Terms : T/T
    Supply Ability : 3000 sets per year
    • Product Details
    • Company Profile

    Industrial Woodworking Sliding Panel Saw Table Saw MJ6132AD2800*1100*1200mm

    Woodworking Machine Sliding Panel Saw MJ6132AD for Plywood and Panel Cutting Made in China

    Woodworking machines


    Description:


    1.Electrical lifting of main saw blade, and the control board is easy to operate.

    Industrial Woodworking Sliding Panel Saw Table Saw MJ6132AD2800*1100*1200mm


    2.Suitable for processing various MDF, particleboard, wood-based panel, ABS board, PVC board, plexiglass

    plate and solid wood and other wood structure similar to the hardness of the plate.

    Industrial Woodworking Sliding Panel Saw Table Saw MJ6132AD2800*1100*1200mm


    3. Henghong electric motor with Aluminum shell

    Industrial Woodworking Sliding Panel Saw Table Saw MJ6132AD2800*1100*1200mm

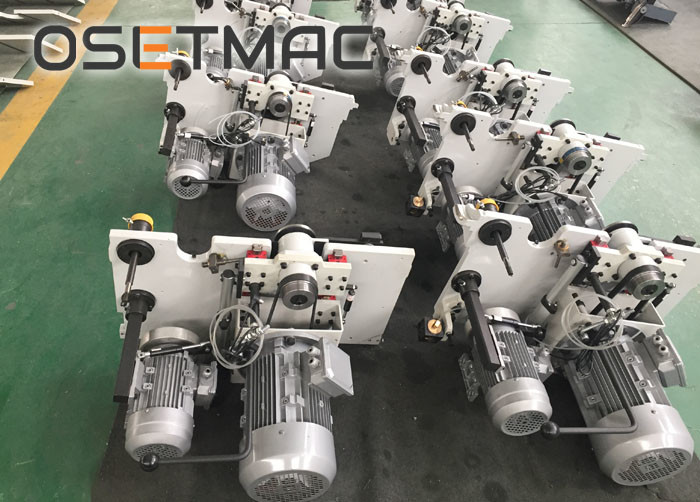

    4.Haorun saw spindle

    Industrial Woodworking Sliding Panel Saw Table Saw MJ6132AD2800*1100*1200mm


    5. All bearings in this machine is SKF Bearings.

    Industrial Woodworking Sliding Panel Saw Table Saw MJ6132AD2800*1100*1200mm


    6.1.9m European guiding ruler


    7.Big dust cover can be connected with this machine.

    Industrial Woodworking Sliding Panel Saw Table Saw MJ6132AD2800*1100*1200mm


    Specifications:


    Sliding Table Dimension3200*380mm
    Cast Iron Table Dimension910*620*80mm
    Length Extension Table905*680*70mm
    Width Cutting Extension Table640*680*70mm
    Main Saw Diameter300mm
    Main Saw Blade Diameter Maximum350mm
    Main Saw Bore Diameter30mm
    Max. Cutting Height With Bade at 9080/100mm(φ300/350)
    Max. Cutting Height With Bade at 4550/70mm(φ300/350)
    Main Motor Power5.5KW
    Main Blade Speed4000/6000RPM
    Scorning Saw Blade Diameter120mm
    Scorning Saw Bore Diameter20mm
    Scorning Saw Motor Power1.1KW
    Scorning Blade Speed8000RPM
    Max. Cutting Width1250mm
    Max. Cutting Length3100mm
    Blade Tilting Adjustment90°
    Main Saw Height AdjustmentElectric
    Scorning Saw Height AdjustmentManual
    Dust Guard Outlet Diameter80mm
    Dust System Outlet Diameter100mm

    Wood Packing Dimensions

    Main Crate and Sliding table

    2250*1150*1100mm

    3400*450*290mm

    Installation Dimensions3250*3450*900mm
    Gross Weight790KG

    Competitive Advantage:

    1. We can change the outlook of the machine according to your requirement.
    2. Any size of the sliding table can be produced and the longest customized size is 4.2 m.
    3. We have two wholly-owned manufacturing factories and can make sure of the delivery time.
