    Woodworking Machinery Sliding Panel Saw MJ6130TY For Wood Cutting

    Ask Lasest Price
    Model Number : MJ6130TY
    Brand Name : OSETMAC
    Certification : CE
    Price : Negotiable
    Delivery Time : 15 days
    Payment Terms : T/T
    Supply Ability : 3000 sets per year
    • Product Details
    • Company Profile

    Woodworking Machinery Sliding Panel Saw MJ6130TY For Wood Cutting


    Woodworking Machine Sliding Panel Saw MJ6130TY for Plywood and Panel Cutting

    Sliding Panel Saw


    Feature:


    1. It is suitable for all kinds of density boards, shaving boards, wood-based panels, ABS

    panels, PVC panels, organic glass plates and solid wood and others with wood structure

    and similar hardness.

    2 .Movable table guide track is plating chromium steel balls structure, exact and durable.

    3 .Made of high-strengh extruded aluminum alloy,movable table is high in strength and won't bend.

    4. With oxidation treatment, movable table surface is beautiful and hardwearing.

    Sliding table saw control board

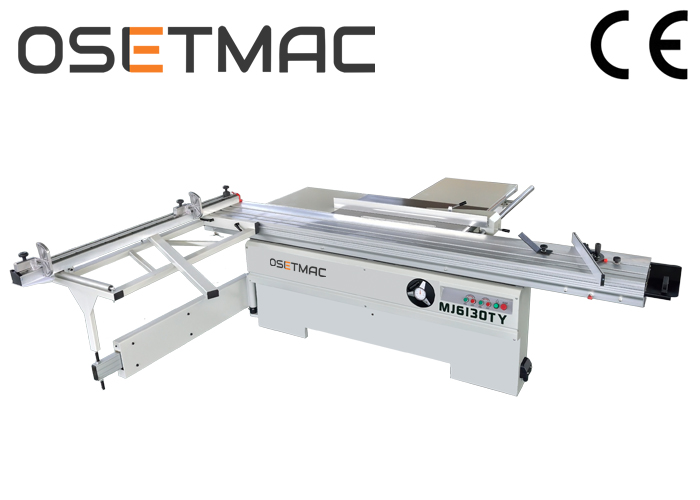

    wood panel saw MJ6130TY


    Applications:


    This machine is suitable for processing all kinds of density boards, shaving boards, wood-based panels, ABS panels, PVC panels, organic glass plates and solid wood and others with wood structure and similar hardness.

    Woodworking Machinery Sliding Panel Saw MJ6130TY For Wood Cutting

    Woodworking Machinery Sliding Panel Saw MJ6130TY For Wood CuttingWoodworking Machinery Sliding Panel Saw MJ6130TY For Wood Cutting


    Specifications:


    Sliding Table Dimension3000*375mm
    Cast Iron Table Dimension980*560*70mm
    Length Extension Table760*630*50mm
    Width Cutting Extension Table575*550*50mm
    Main Saw Diameter300mm
    Main Saw Blade Diameter Maximum315mm
    Main Saw Bore Diameter30mm
    Max. Cutting Height With Bade at 9080/100mm(φ300/350)
    Max. Cutting Height With Bade at 4555mm 50/70mm(φ300/350)
    Main Motor Power4KW(5.5KW)
    Main Blade Speed4000/6000RPM
    Scoring Saw Blade Diameter120mm
    Scoring Saw Bore Diameter20mm
    Scoring Saw Motor Power0.75KW(1.1KW)
    Scoring Blade Speed8000RPM
    Max. Cutting Width1250mm
    Max. Cutting Length3000mm
    Blade Tilting Adjustment0-45°
    Main Saw Height AdjustmentManual
    Scoring Saw Height AdjustmentManual

    Wood Packing Dimensions

    Main Crate and Sliding table

    2100*1100*1100mm

    3400*420*220mm

    Installation Dimensions3250*3150*900mm
    Net Weight680KG

    Woodworking Machinery Sliding Panel Saw MJ6130TY For Wood Cutting

    Woodworking Machinery Sliding Panel Saw MJ6130TY For Wood Cutting


    Competitive Advantage:

    1. We can change the outlook of the machine according to your requirement.
    2. Any size of the sliding table can be produced and the longest customized size is 4.2 m.
    3. We have two wholly-owned manufacturing factories and can make sure of the delivery time.

    panel saw
