    High Precision Woodworking Sliding Table Saw Panel Saw MJ6132TYD made in China

    Ask Lasest Price
    Model Number : MJ6132TYD
    Brand Name : OSETMAC
    Certification : CE
    Price : Negotiable
    Delivery Time : 15 days
    Payment Terms : T/T
    Supply Ability : 3000 sets per year
    • Product Details
    • Company Profile

    High Precision Woodworking Sliding Table Saw Panel Saw MJ6132TYD made in China

    Woodworking Machine Panel Saw Sliding Panel Saw MJ6132TYD for Plywood and Panel Cutting

    panel saw MJ6132TYD

    Description:


    The lifting of the main saw is manual control with linear guide lifting.

    panel saw lifting control


    The sliding table is made of high-strength extruded, anodized aluminum that will stay square

    and true and won’t bent.

    sliding table

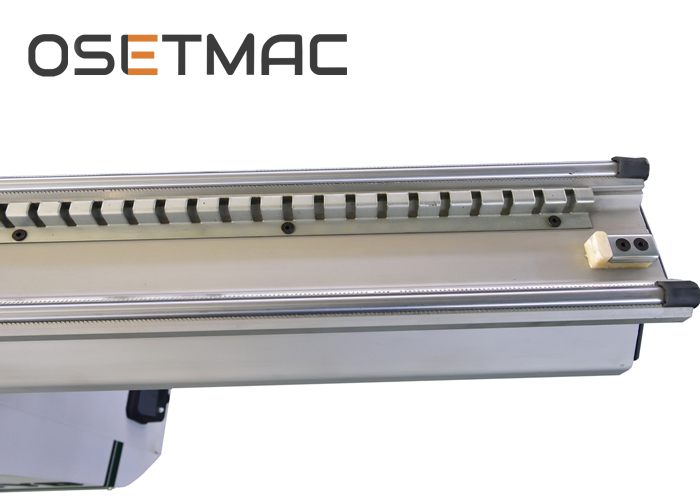

    Comb Lock on the sliding table makes it more convinient to stop the table at your prefer position.

    comb lock

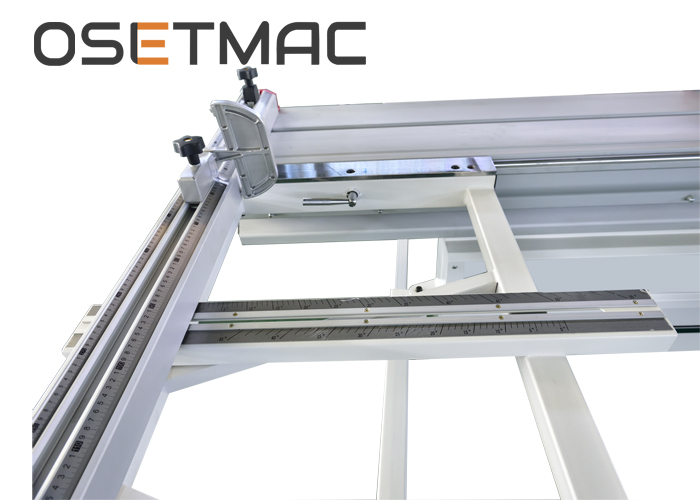

    Crosscut angle ruler

    sliding table saw


    Fine adjustment to the rip fence.

    Sliding table saw


    Saw blade with protective cover and riving knife

    Panel saw


    Applications:


    This machine apply to processing all kinds of density boards, shaving boards, wood-based panels, ABS panels, PVC panels, organic glass plates and solid wood and others with wood structure and similar hardness.

    sliding table saw


    Specifications:


    Sliding Table Dimension3200*375mm
    Cast Iron Table Dimension980*560*70mm
    Length Extension Table760*630*50mm
    Width Cutting Extension Table575*550*50mm
    Main Saw Diameter300mm
    Main Saw Blade Diameter Maximum300mm
    Main Saw Bore Diameter30mm
    Max. Cutting Height With Bade at 9080/100mm(φ300/350)
    Max. Cutting Height With Bade at 4555mm50/70mm(φ300/350)
    Main Motor Power4KW(5.5KW)
    Main Blade Speed4000/6000RPM
    Scoring Saw Blade Diameter120mm
    Scoring Saw Bore Diameter20mm
    Scoring Saw Motor Power0.75KW(1.1KW)
    Scoring Blade Speed8000RPM
    Max. Cutting Width1250mm
    Max. Cutting Length3200mm
    Blade Tilting Adjustment0-45°
    Main Saw Height AdjustmentManual
    Scoring Saw Height AdjustmentManual

    Wood Packing Dimensions

    Main Crate and Sliding table

    2100*1100*1100mm

    3400*420*220mm

    Installation Dimensions3250*3150*900mm
    Net Weight680KG
    High Precision Woodworking Sliding Table Saw Panel Saw MJ6132TYD made in China

    Competitive Advantage:

    1. We can change the outlook of the machine according to your requirement.
    2. Any size of the sliding table can be produced and the longest customized size is 4.2 m.
    3. We have two wholly-owned manufacturing factories and can make sure of the delivery time.

    High Precision Woodworking Sliding Table Saw Panel Saw MJ6132TYD made in ChinaHigh Precision Woodworking Sliding Table Saw Panel Saw MJ6132TYD made in ChinaHigh Precision Woodworking Sliding Table Saw Panel Saw MJ6132TYD made in China
