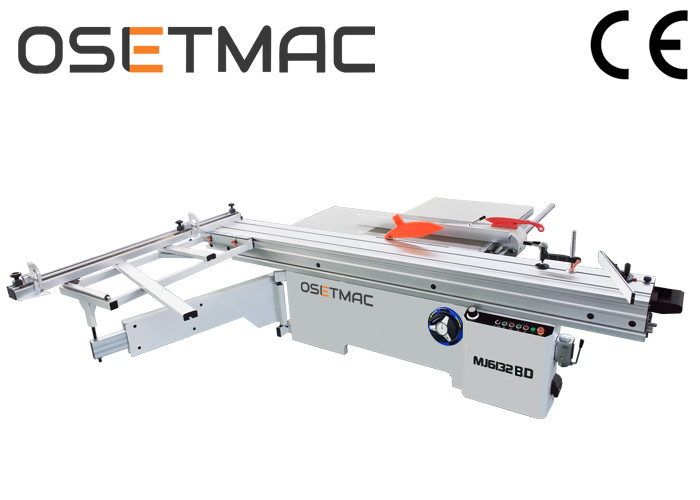

    Woodworking Machine Sliding Table Saw MJ6132BD For Plywood And Panel Cutting

    Ask Lasest Price
    Model Number : MJ6132BD
    Brand Name : OSETMAC
    Certification : CE
    Price : Negotiable
    Delivery Time : 15 days
    Payment Terms : T/T
    Supply Ability : 3000 sets per year
    • Product Details
    • Company Profile

    Woodworking Machine Sliding Table Saw MJ6132BD For Plywood And Panel Cutting

    Woodworking Machine Sliding Panel Saw MJ6132BD for Plywood and Panel Cutting


    http://www.youtube.com/watch?v=1JZ1bkaM0VM&t=82s

    Woodworking Machine Sliding Table Saw MJ6132BD For Plywood And Panel Cutting

    Detail Show


    SKF Bearing

    All bearings in this machine are all imported SKF brand, which has lower sliding resistance and power consumption comparing with ordinary bearings.

    Woodworking Machine Sliding Table Saw MJ6132BD For Plywood And Panel Cutting

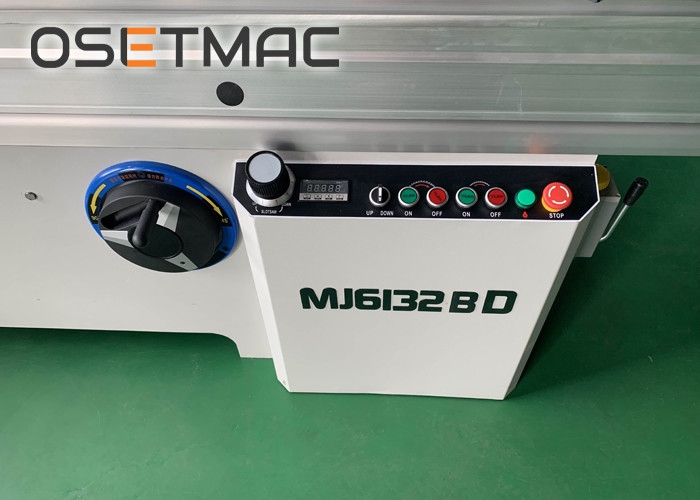

    Controlling Board

    The main saw blade lifting is electric control which makes it easy to operate. The rotation of hand wheel for saw blade tilting is very light and handy.

    Woodworking Machine Sliding Table Saw MJ6132BD For Plywood And Panel Cutting


    Rip Fence Fine Adjustment

    Fine adjustment range is between 0-10mm, which makes the saw cutting size more precise. It is also very easily to adjust.

    Sliding Table Rip Fence


    Orange Dust Hood and Riving Knife

    The orange dust hood is fixed on the riving knife, which is very easy to adjust. It also has the functions of warning, protection and dust absorption.

    riving knife


    Description:

    1. The lifting of the main saw is electrical control with linear guide lifting.
    2. The sliding table is made of high-strength extruded, anodized aluminum that will stay square and true and won’t bent.
    3. Digital readout can be used on the rip fence and crosscut fence if you like, which lets you make repeatable cuts without having to lose time measuring lengths.
    4. The scoring blade spins at 8,000 rpm to ensure a crisp, clean cut without frayed or ripped edges.
    5. Huge 3200*375mm sliding table slides on 4 precision shafts for jitter-free motion.
    6. Covered by a 1-year parts warranty.

    Woodworking Machine Sliding Table Saw MJ6132BD For Plywood And Panel Cutting


    Specifications:


    Sliding Table Dimension3200*375mm
    Cast Iron Table Dimension980*560*70mm
    Length Extension Table760*630*50mm
    Width Cutting Extension Table575*550*50mm
    Main Saw Diameter300mm
    Main Saw Blade Diameter Maximum300mm
    Main Saw Bore Diameter30mm
    Max. Cutting Height With Bade at 9080/100mm(φ300/350)
    Max. Cutting Height With Bade at 4555mm50/70mm(φ300/350)
    Main Motor Power4KW(5.5KW)
    Main Blade Speed4000/6000RPM
    Scoring Saw Blade Diameter120mm
    Scoring Saw Bore Diameter20mm
    Scoring Saw Motor Power0.75KW(1.1KW)
    Scoring Blade Speed8000RPM
    Max. Cutting Width1250mm
    Max. Cutting Length3200mm
    Blade Tilting Adjustment0-45°
    Main Saw Height AdjustmentManual
    Scoring Saw Height AdjustmentManual

    Wood Packing Dimensions

    Main Crate and Sliding table

    2100*1100*1100mm

    3400*420*220mm

    Installation Dimensions3250*3150*900mm
    Net Weight680KG

    Competitive Advantage:

    1. We can change the outlook of the machine according to your requirement.
    2. Any size of the sliding table can be produced and the longest customized size is 4.2 m.
    3. We have two wholly-owned manufacturing factories and can make sure of the delivery time.

    Woodworking Machine Sliding Table Saw MJ6132BD For Plywood And Panel CuttingWoodworking Machine Sliding Table Saw MJ6132BD For Plywood And Panel Cutting
