    Plywood And Panel Cutting Woodworking Sliding Table Saw

    Ask Lasest Price
    Brand Name : OSETMAC
    Model Number : MJ6132BD
    Certification : CE,ISO
    Price : Negotiable
    Payment Terms : T/T, L/C
    Supply Ability : 3000 sets per year
    Delivery Time : 15 days
    • Product Details
    • Company Profile

    Plywood And Panel Cutting Woodworking Sliding Table Saw

    OSETMAC Sliding Table Saw MJ6132BD with Electric Lifting of Main Saw Blade and Scoring Saw Blade

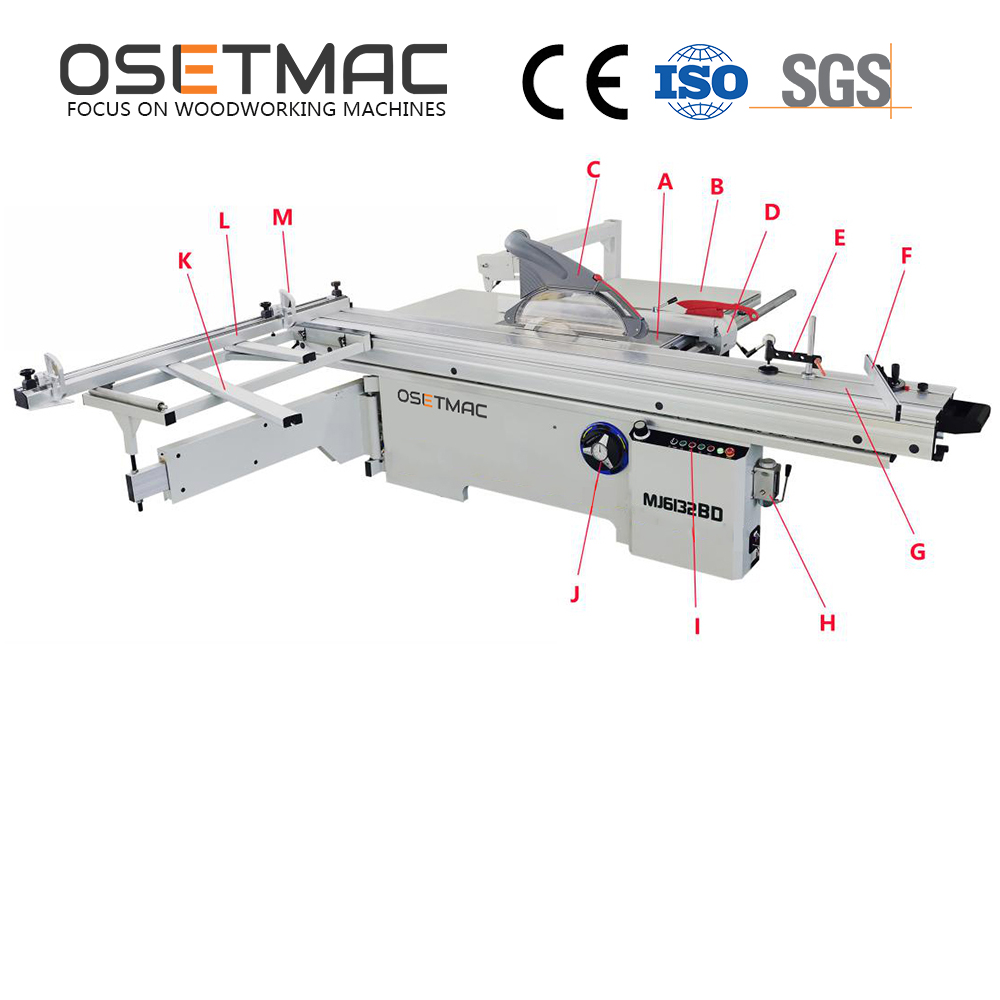

    AMain TableMain working table
    BExtension TableExtension working table
    CDust GuardNot only reduce dust produced by chips while cutting, but also warning the operator where the saw-blade position.
    DRip FenceReference positioning while ripping
    EHand SwageTo press the workpiece on the sliding table
    FMiter FenceReference positioning while 0-45° cutting
    GSliding TableTable for main feeding while cutting
    HOilerTo oil for the inner structure
    IControlling PanelControl the machines running,indication, stop,lifting etc.
    JHand Wheel for Mail Saw TiltingTo adjust main saw tilting 0-45°
    KCross Cut TableUsed to put the workpiece while cross cutting
    LCross Cut FenceTo position the size of the movable positioning board
    MMovable Positioning StopsTo position while cross cutting

    Inner Structure

    This machine uses linear guideway to lift the saw blade which is more smooth and more durable. Aluminum shell motor makes sure its good heat dissipation. 25mm metal plate guarantees the compress strength and the high precision of the inter-machine, which can also reduce the shock of the machine.


    Sliding Table Structure and Feature

    Our sliding table supplier is the same as SCM. Our table is made of fully-extruded, anodized aluminum that will stay square and true over many years of use. The guideway of movable table is steel bar structure. After quenching and chromizing, our table is more smooth and less resistance. The comb lock on the table makes it
