    PVC Board Furniture Woodworking Edge Banding Machine With Trimming Function

    Ask Lasest Price
    Model Number : SYS-468J
    Brand Name : OSETMAC
    Certification : CE ISO
    Price : Negotiable
    Delivery Time : 15 days
    Payment Terms : T/T, L/C
    Supply Ability : 3000 sets per year
    • Product Details
    • Company Profile

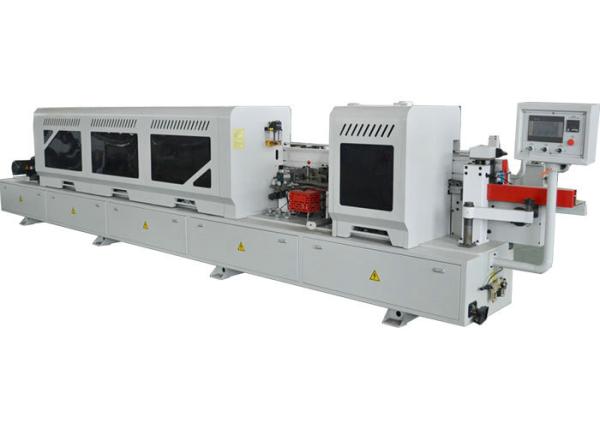

    PVC Board Furniture Woodworking Edge Banding Machine With Trimming Function

    SYS-468 Automatic Edge Bander with Trimming for Panel Furniture and PVC


    High efficiency full automatic edge banding machine has additional functions such as corner trim and pre-milling etc., material edge banding work. This banding machine is widely used for kitchen cabinet, wardrobe, office table etc. furniture edging treatment, The edge banding material can be PVC, Acrylic, Veneer etc, It’s your idea selection for full functions automatic edge banding machine.


    Description:

    1. Full automatic with functions of : Gluing, End Cutting, Rough Trimming,Fine Trimming, Track Trimming, Scraping, Buffing.
    2. This machine uses imported quality engines and electrics, which make sure of the high performance and stability of the machine.
    3. High precision and easy-to-use features makes your work more efficient.
    4. This model has best quality-price ratio with good quality and automatic functions, which is perfect choice for companies who need continuous and high quality edge banding of panels.
    5. This machine can be customized as your requirement and we have serialized products with a wide range of selection for you.

    Applications:


    This edge banding machine is suitable for PVC, ABS, MDF, Solid, shaving board, Melamine, Batten, Veneer ,plywood and particle board etc.


    Specifications:


    MODELSYS-468
    Panel Thickness10-60mm
    Edge Band Thickness0.4-3mm
    Panel Width≥60mm
    Panel Length≥150mm
    Feeding Speed15-23m/min
    Working Pressure0.6Mpa
    Voltage380V/50HZ/3PH
    Gluing Motor0.75KW 50HZ 1400RPM
    End Cutting Motor0.37KW * 2 200HZ 12000RPM
    Trimming Motor0.75KW * 4 300HZ 18000RPM
    Track Trimming Motor0.37KW*2
    Buffing Motor0.37KW * 2 50HZ 1400RPM
    Conveyor Motor2.2KW
    Lifting Motor0.37KW
    Glue Pot Heating Power1.85KW
    Assistant Heating Power0.45KW
    Lighting Power0.16KW
    Total Power11.0KW
    Dimension5660x830x1610mm
    Net Weight2100KGS

    Competitive Advantage:

    1. We can customize the outlook and functions of the machine according to your requirement.
    2. We have two wholly-owned manufacturing factories and can make sure of the delivery time.
