    1300mm Wide Belt Sander Inverter Control Wood Sanding Machine

    Ask Lasest Price
    Brand Name : OSETMAC
    Model Number : R-R-R1300
    Certification : CE, ISO
    Price : USD10000-USD20000
    Payment Terms : L/C, L/C, T/T, Western Union
    Supply Ability : 2000 SET/YEAR
    Delivery Time : 7-15 working days
    • Product Details
    • Company Profile

    1300mm Wide Belt Sander Inverter Control Wood Sanding Machine

    1300mm Wide Belt Sander Inverter Control Wood Sanding Machine


    Wide Belt Sander Description


    1.This Wide Belt Sander is suitable for the sanding or grinding of doors, cabinet, plywood, MDF and other panel furniture and solid wood furniture.


    2. Imported belt makes the sanding machine more durable


    3. Imported cutter roller, thicknes roller and soft rubber rollers.


    4. The casting retaining device can avoid the rebound of the sanding materials.


    5. The sandpaper grades are from #60-#600


    6. Seperated structure of beam tube and beam seat makes it more convenient to maintain.


    Wood Belt Sanding Machine R-R-R1300 Specificaitons


    Max Working Width1300mm
    Max Working Thickness160mm
    Min Working Length≥500mm
    Roller SpeedInverter Control
    Conveyor Speed6-30m/min
    First Roller Power22KW
    Second Roller Power30KW
    Third Roller Power22KW
    Conveyor Motor4.0KW
    Lifting Motor0.55KW
    Total Power78.55KW
    First Roller Diameter180mm
    Second Roller Diameter240mm
    Third Roller Diameter240mm
    Sandpaper Size1330*2200mm
    Working Pressure0.6Mpa
    Dimension2800*2700*2200mm
    Weight4500KGS

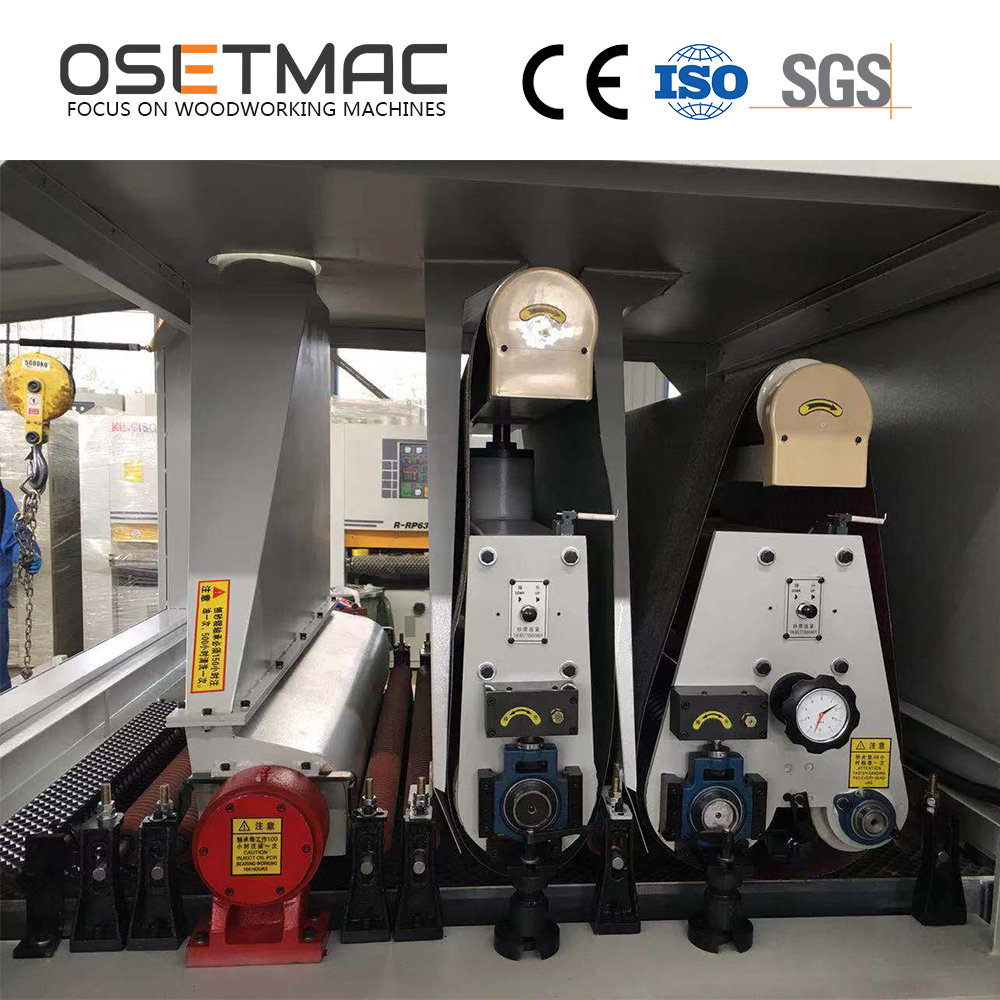

    Woodworking Machinery Belt Sanding Machine R-R-R1300 Inner Structure


    Quality 1300mm Wide Belt Sander Inverter Control Wood Sanding Machine for sale
