    Width 60mm Woodworking Edge Banding Machine with 8 Functions

    Ask Lasest Price
    Brand Name : OSETMAC
    Model Number : SYS-568
    Certification : CE
    Price : 18000USD
    Payment Terms : L/C, T/T, MoneyGram, MoneyGram
    Delivery Time : 5-8working days
    • Product Details
    • Company Profile

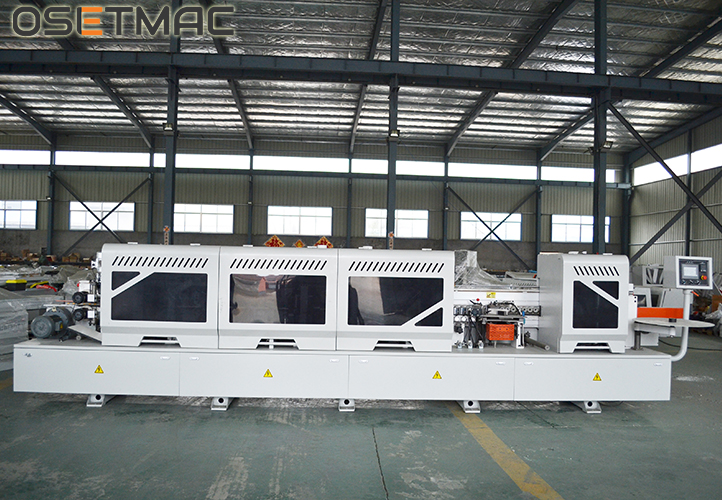

    Width 60mm Woodworking Edge Banding Machine with 8 Functions

    Width 60mm Woodworking Edge Banding Machine With 8 Functions


    Description of Woodworking Edge Banding Machine :


    * 8 Functions: Pre-milling--Gluing--End Cutting--Rough Trimming--Fine Trimming--Corner Rounding--Scraping--Buffing
    * DELTA inverter or MCGS inverter for your choice.
    * PLC Touch Screen
    * The conveyor speed can be adjusted from 13-25m/min
    *Honeywell travel switch, contactor, air switch.
    *Air Tac solenoid valve, air cylinder,oil-water seperator.
    * With automatic oil feeder.
    *14mm high strenth steel sheet for the whole machine.
    * Support customization for the machine appearance.


    Parameters
    ModelSYS-568
    Panel Thickness10-60mm
    Edge Band Thickness0.3-3mm
    Panel Width≥60mm
    Panel Length≥150mm
    Feeding Speed15-23m/min
    Working Pressure0.6Mpa
    Voltage380V/50HZ/3PH
    Pre-milling Motor2.2KW * 2
    Gluing Motor0.75KW 50HZ 1400RPM
    End Cutting Motor0.37KW * 2 200HZ 12000RPM
    Trimming Motor0.75KW * 4 200HZ 12000RPM
    Corner Trimming Motor0.37KW * 2 200HZ 12000RPM
    0.75KW * 2 200HZ 12000RPM
    Buffing Motor0.37KW * 2 50HZ 1400RPM
    Conveyor Motor3.7KW
    Glue Pot Heating Power2.4KW
    Lighting Power0.05KW
    Lifting Motor0.25KW
    Total Power16.62KW
    Dimension6700*1000*1650mm
    Wooden Crate Package6800*1050*1760mm
