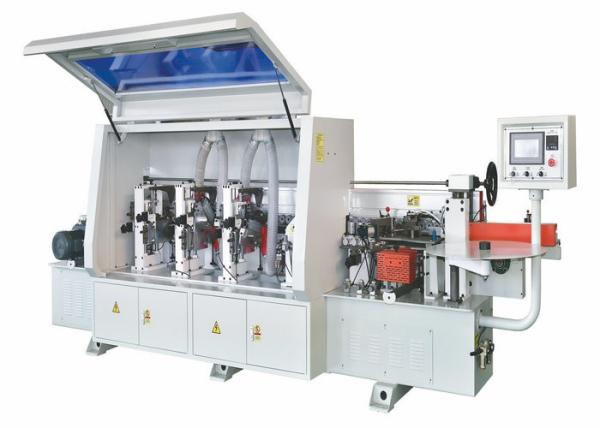

    15-23 M/min Woodworking Edge Banding Machine PLC Touch Screen

    Ask Lasest Price
    Brand Name : OSETMAC
    Model Number : SYS-365
    Certification : CE,ISO
    Price : Negotiable
    Payment Terms : T/T, L/C
    Supply Ability : 3000 sets per year
    Delivery Time : 15 days
    • Product Details
    • Company Profile

    15-23 M/min Woodworking Edge Banding Machine PLC Touch Screen

    15-23 M/min Woodworking Edge Banding Machine PLC Touch Screen

    Quick Detail of Woodworking Edge Banding Machine :

    (1) using imported quality engines and electric components
    (2) Serialized products, a wide range of selection by customers

    (3) High precision and efficiency

    Description of Woodworking Edge Banding Machine:

    1. Full automatic with functions of : Gluing, End Cutting, Fine Trimming, Scraping, Buffing.
    2. This machine uses imported quality engines and electrics, which makes high performance and best quality-price ratio.
    3. High precision and easy-to-use features makes your work more efficient.
    4. This machine can be customized as your requirement and we have serialized products with a wide range of selection for you.

    Woodworking Edge Banding Machine Specifications:

    MODELSYS-365
    Panel Thickness10-60mm
    Edge Band Thickness0.4-3mm
    Panel Width≥60mm
    Panel Length≥150mm
    Feeding Speed15-23m/min
    Working Pressure0.6Mpa
    Voltage380V/50HZ/3PH
    Gluing Motor0.75KW 50HZ 1400RPM
    End Cutting Motor0.37KW * 2 200HZ 12000RPM
    Fine Trimming Motor0.75KW * 4 300HZ 18000RPM
    Buffing Motor0.37KW * 2 50HZ 1400RPM
    Conveyor Motor2.2KW
    Glue Pot Heating Power1.85KW
    Assistant Heating Power0.45KW
    Lighting Power0.08KW
    Total Power8.3KW
    Dimension3940x830x1610mm
    Net Weight1300KGS



    Competitive Advantage:

    1. We can customize the outlook and functions of the machine according to your requirement.
    2. We have two wholly-owned manufacturing factories and can make sure of the delivery time.
